66356

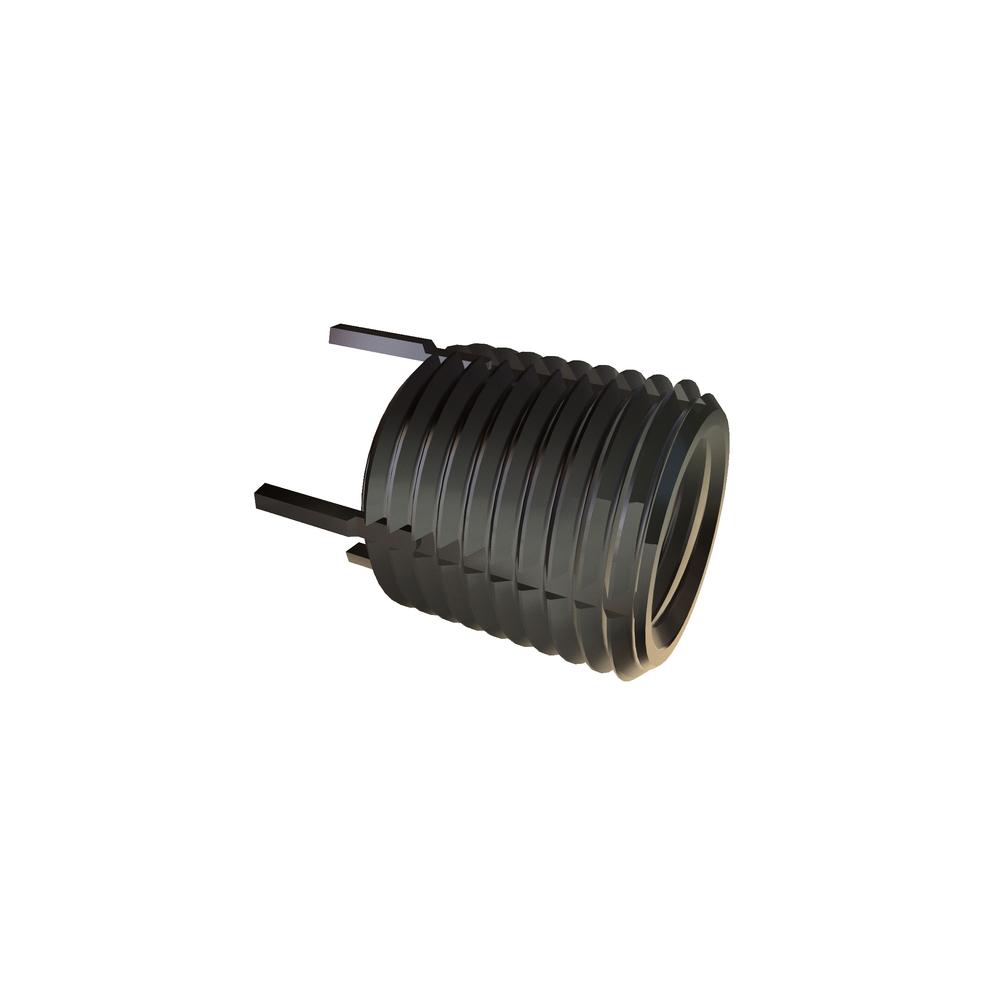

M12-1.75 X 16.0 KEYLOCK INS M16-1.5
Alternate Codes: 93715A635
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M12x1.75 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Thin Wall |
| Material | 303 Stainless Steel |
| External Thread | M16-1.5 |
| Units | Metric |
| Nominal Diameter | 12.00 mm |
| Insert Type | Non Locking |
| Drill Size | 14.75 mm |
| Removal Drill Depth | 4.75 mm |
| Removal Drill Size | 13.5 mm |
| Minimum Installation Depth | 17.50 mm |
| Thread Tap Size | M16-1.5 |
| External Thread Nominal Diameter | 16.00 mm |
| Internal Thread Nominal Diameter | 12.00 mm |
| Counter Sink Diameter | 16.25 mm |
