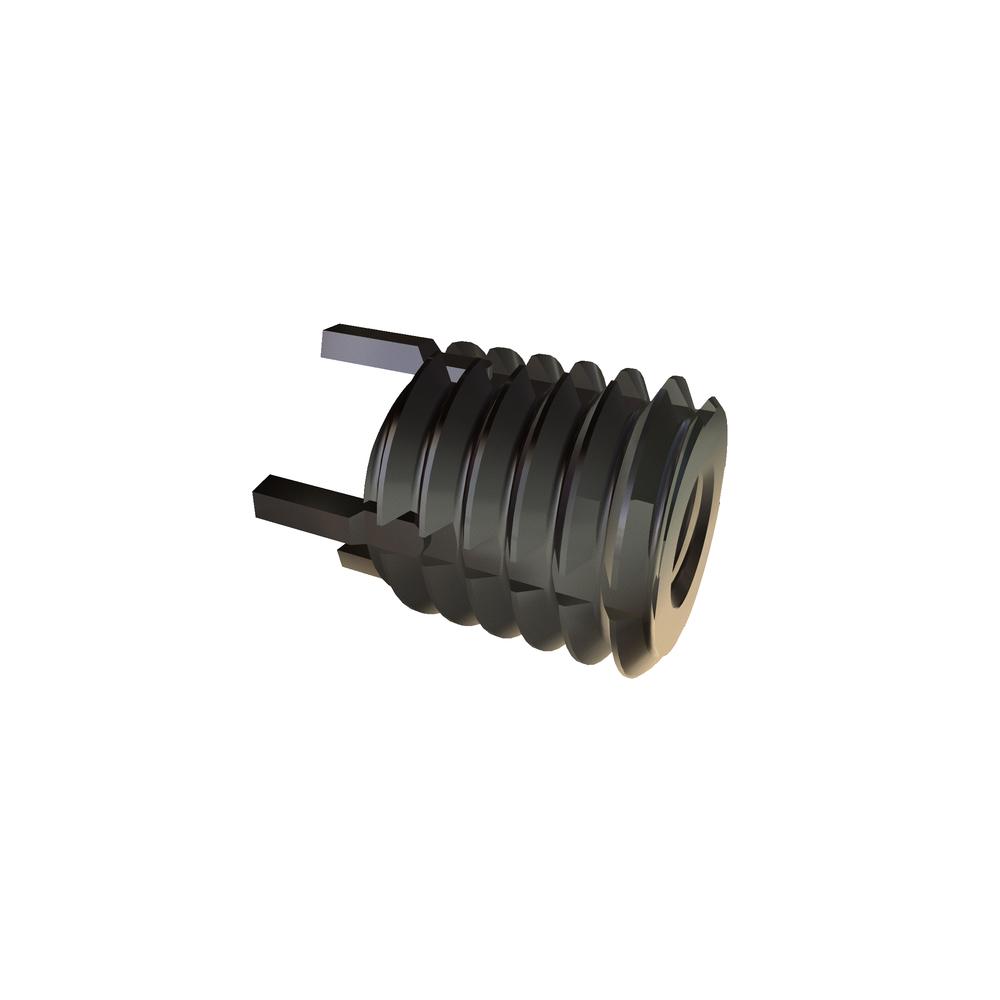

Image for reference purposes only. Actual product may vary.
66363
M4-0.7 X 8 KYLK INS M8-1.25 303 SST
Alternate Codes: 215-066363, 76363 ACME, 93715A355, KNHM4X0.7 HOWMET
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $10.643 | $8.765 | $7.842 | $6.622 | $6.340 | Larger Quantities |
Out of stock
| Thread Size | M4x0.7 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Heavy Duty |
| Material | 303 Stainless Steel |
| External Thread | M8-1.25 |
| Units | Metric |
| Nominal Diameter | 4.00 mm |
| Insert Type | Non Locking |
| Drill Size | 6.9 mm |
| Removal Drill Depth | 4.00 mm |
| Removal Drill Size | 5.5 mm |
| Minimum Installation Depth | 9.50 mm |
| Thread Tap Size | M8-1.25 |
| External Thread Nominal Diameter | 8.00 mm |
| Internal Thread Nominal Diameter | 4.00 mm |
| Counter Sink Diameter | 8.25 mm |
