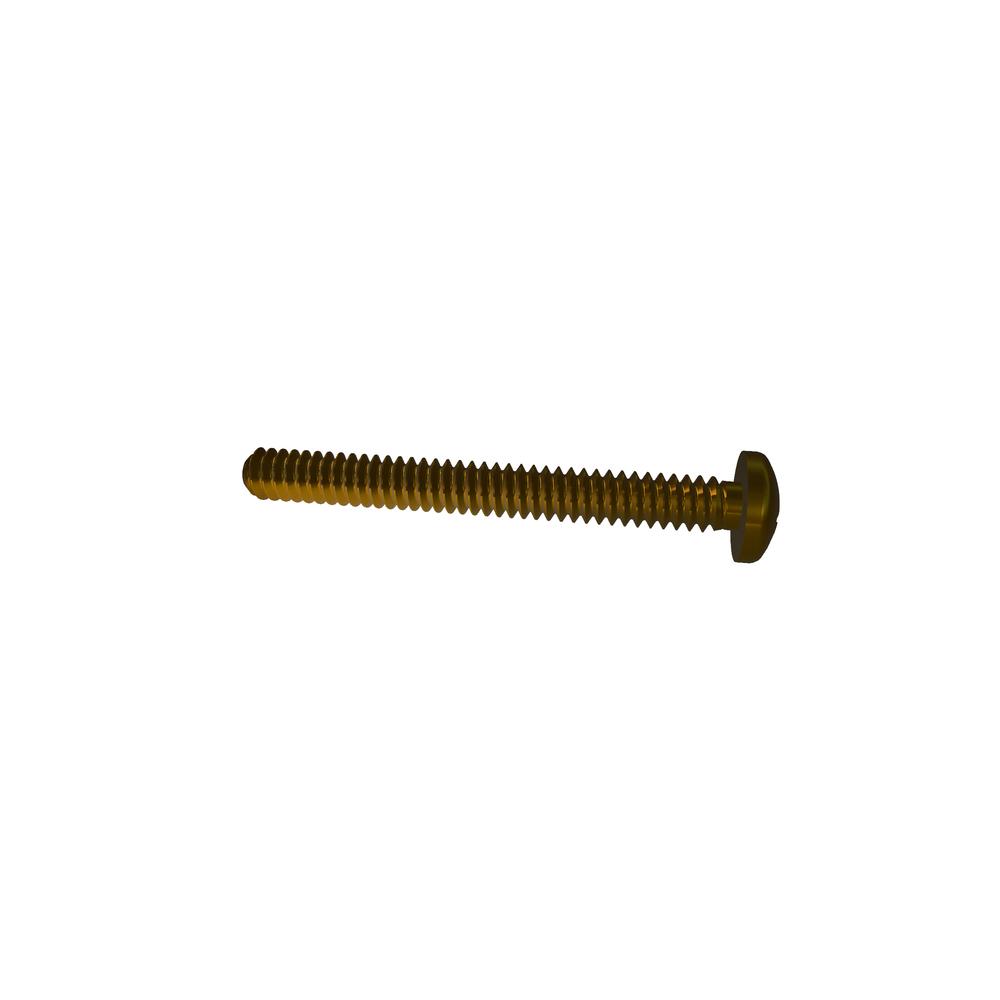

6-32 X 1 1/4 PH PAN BR PLN
6C125PPMBP
| Item Id | 6C125PPMBP |
| Description | 6-32 X 1 1/4 PHL PAN BRASS PLAIN RoHS |
| Alternate Codes | 94070A155 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 94070A155 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Head Radius (Min.) | 0.015in |
| Head Type | Pan |
| Length | 1.25in |
| Material | Brass |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.080in |
| Recess Depth (Min.) | 0.055in |
| Recess Diameter | 0.159in |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
