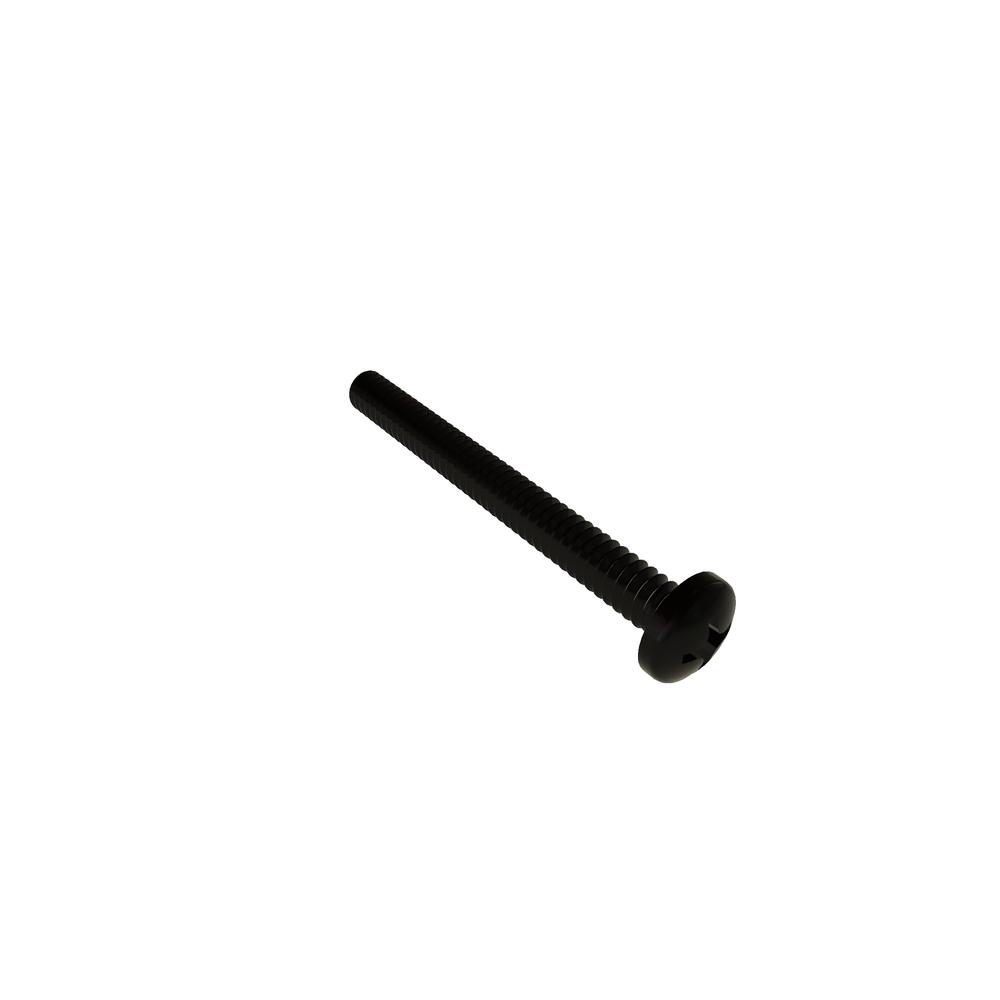

6-32 X 1 3/8 PHIL PAN STEEL BLK OX RoHS
6C137PPMZB
| Item Id | 6C137PPMZB |
| Description | 6-32 X 1 3/8 PHIL PAN STEEL BLK OX RoHS |
| Extended Description | 6-32 X 1 3/8 Phillips Pan Head Steel Black oxide RoHS3 |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Head Radius (Min.) | 0.015in |
| Head Type | Pan |
| Length | 1.37in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.080in |
| Recess Depth (Min.) | 0.055in |
| Recess Diameter | 0.159in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
