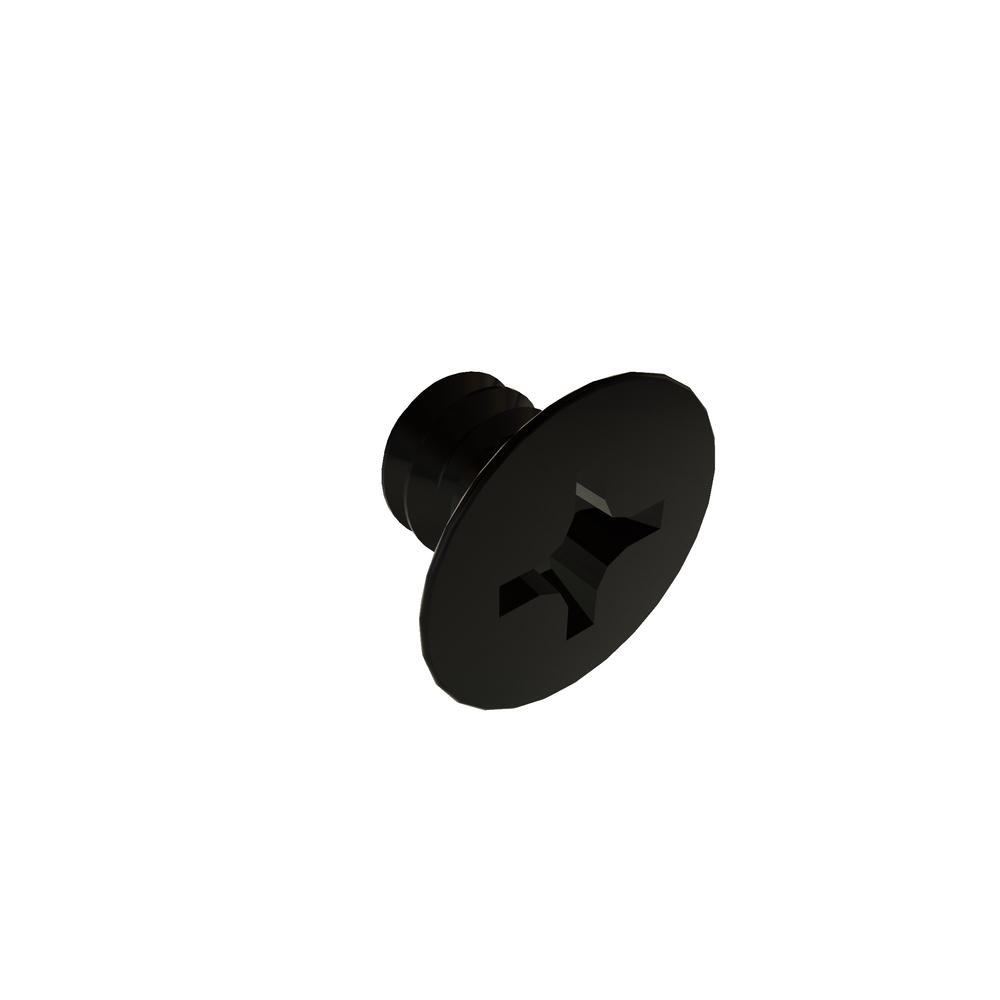

6C18PFHSB
6-32 X 3/16 PHIL FLAT 100 DEG SST RoHS
Alternate Codes: N/A
RoHS
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs |
|---|---|---|---|---|
| $0.076 | $0.047 | $0.034 | $0.026 | $0.024 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Inch |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.148in |
| Nominal Thread Size | 0.138in |
| Head Height | 0.060in |
| Recess Depth (Min.) | 0.052in |
| Recess Depth (Max.) | 0.075in |
| Brand | VARIED |
| Type | Flat Head 100 Degree |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.235in |
