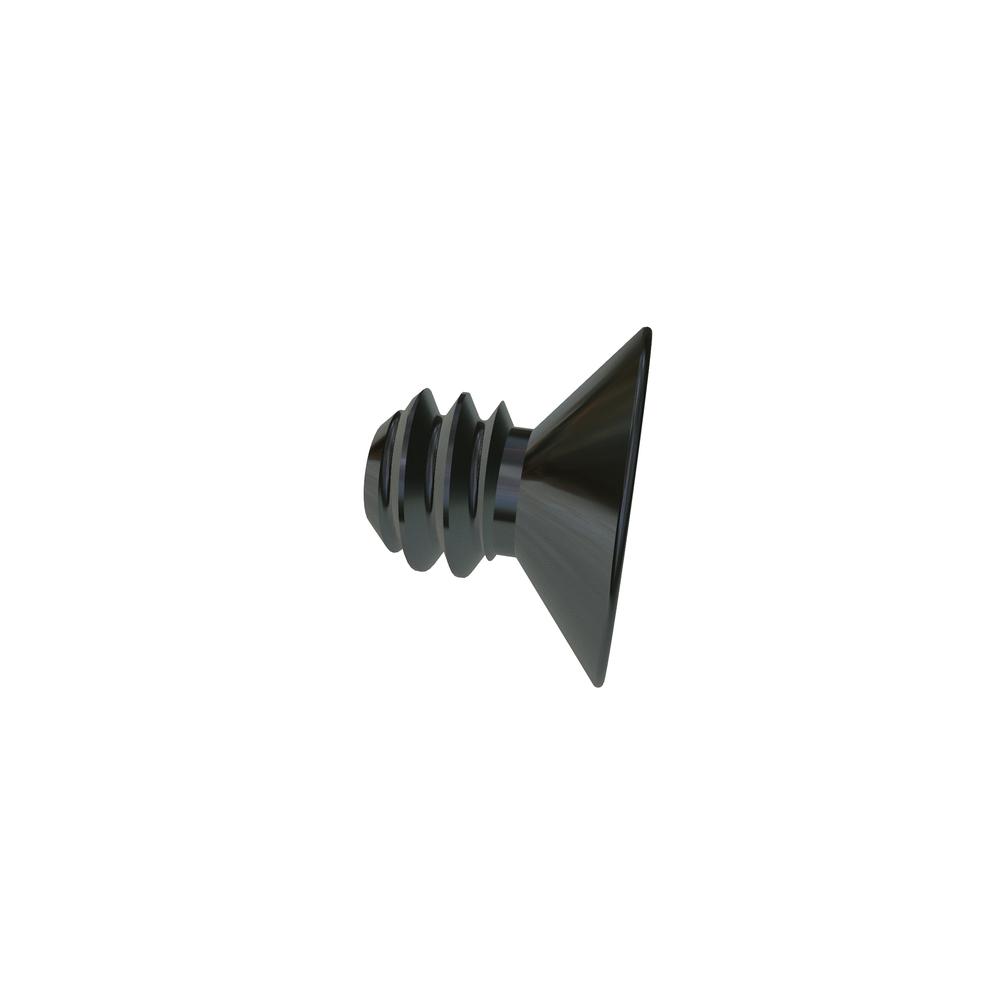

6-32 X 3/16 PHIL FLAT 100 DEG STL ZN CR3
6C18PFHZR
| Item Id | 6C18PFHZR |
| Description | 6-32 X 3/16 PHIL FLAT 100DEG STL ZN RoHS |
| Alternate Codes | 021183, 2831-013-06, 90471A431 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90471A431 90471A431 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.235in |
| Head Height | 0.060in |
| Length | 0.18in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Thread Size | 0.138in |
| Recess Depth (Max.) | 0.075in |
| Recess Depth (Min.) | 0.052in |
| Recess Diameter | 0.148in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Type | Flat Head 100 Degree |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
