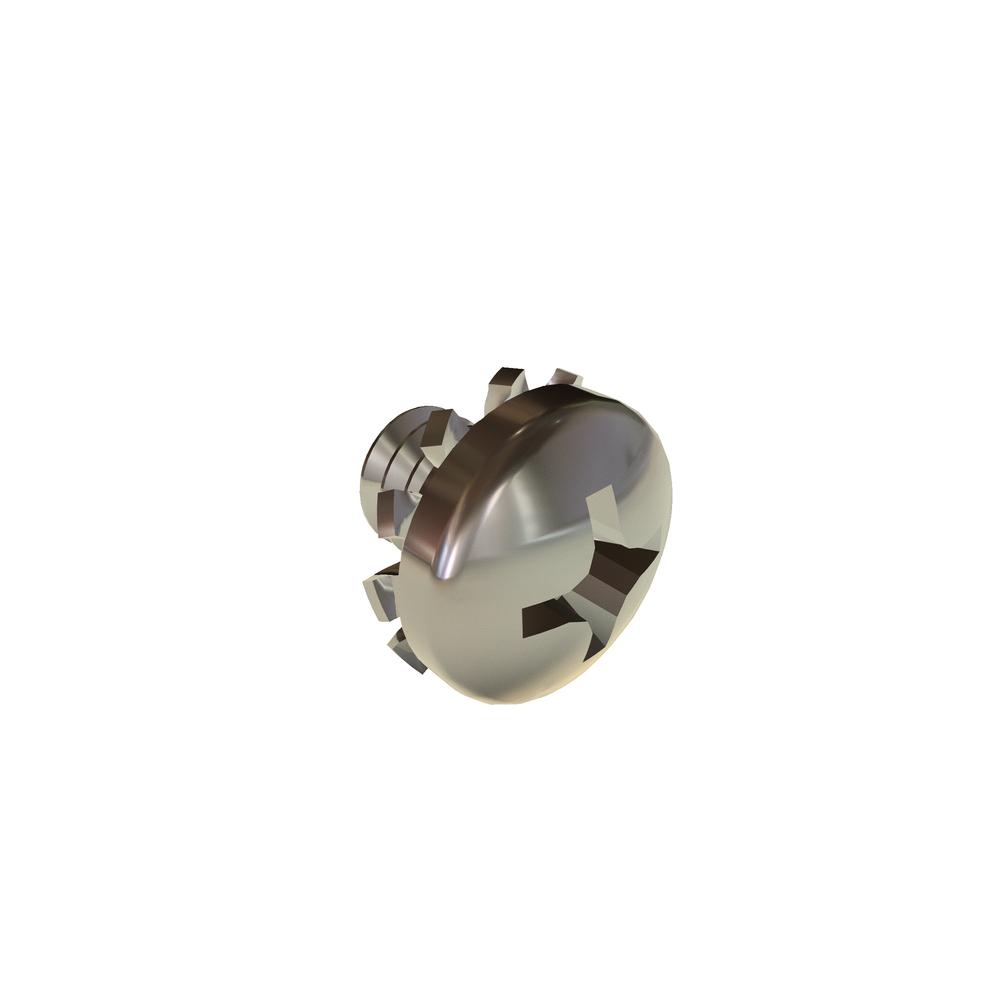

6C18PPES
6-32 X 3/16 PHIL PAN EXT SEMS SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.260 | $0.137 | $0.108 | $0.100 | $0.084 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.022in |
| Lock Washer Outside Diameter (Min.) | 0.270in |
| Lock Washer Outside Diameter (Max.) | 0.285in |
| Washer Type | External Tooth Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Recess Diameter | 0.159in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Additional Industry Cross Reference | 95345A454 |
| Length | 3/16in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Lock Washer Thickness (Min.) | 0.015in |
