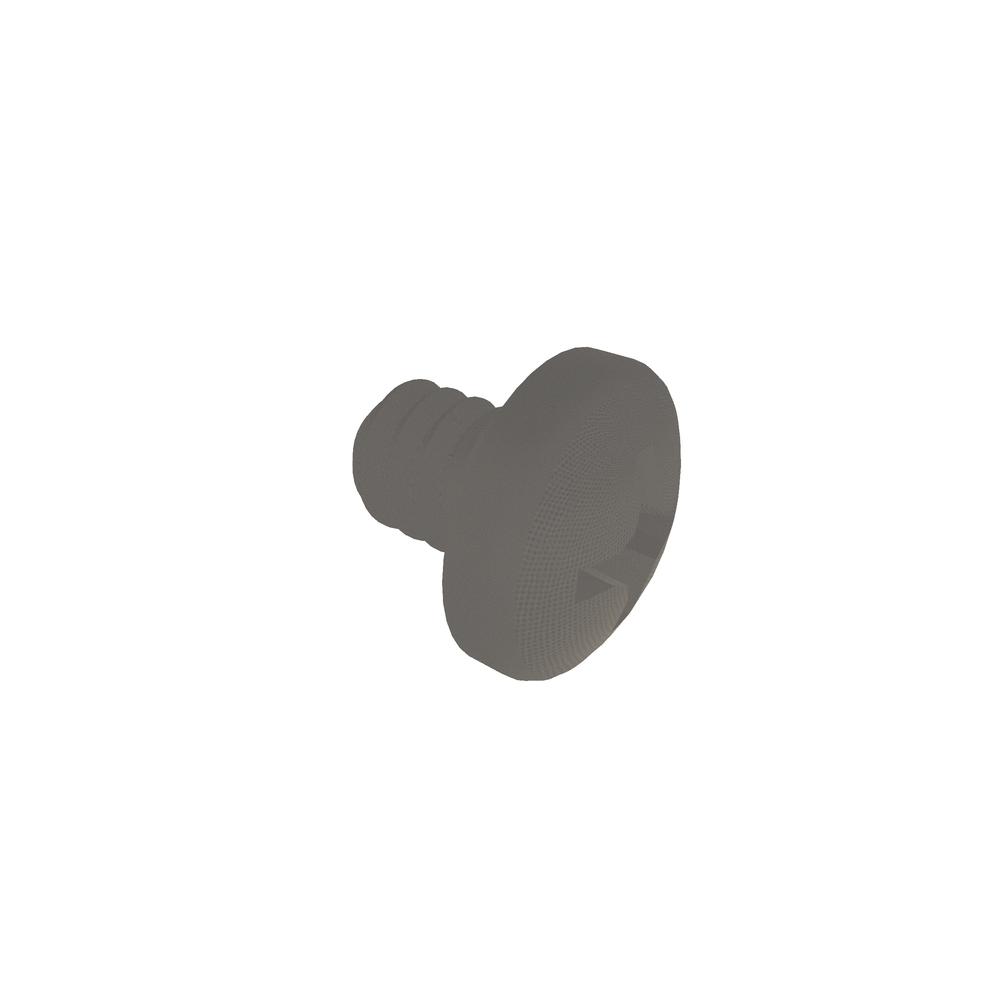

6C18PPMN
6-32 X 3/16 PH PAN NYL
Alternate Codes: N/A
Pricing per Unit
| 1-499 pcs | 500-999 pcs |
|---|---|
| $0.121 | $0.074 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 6-32 |
| Material | Nylon |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.159in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.080in |
| Brand | VARIED |
| Additional Industry Cross Reference | 94735A726 |
| Length | 0.18in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
