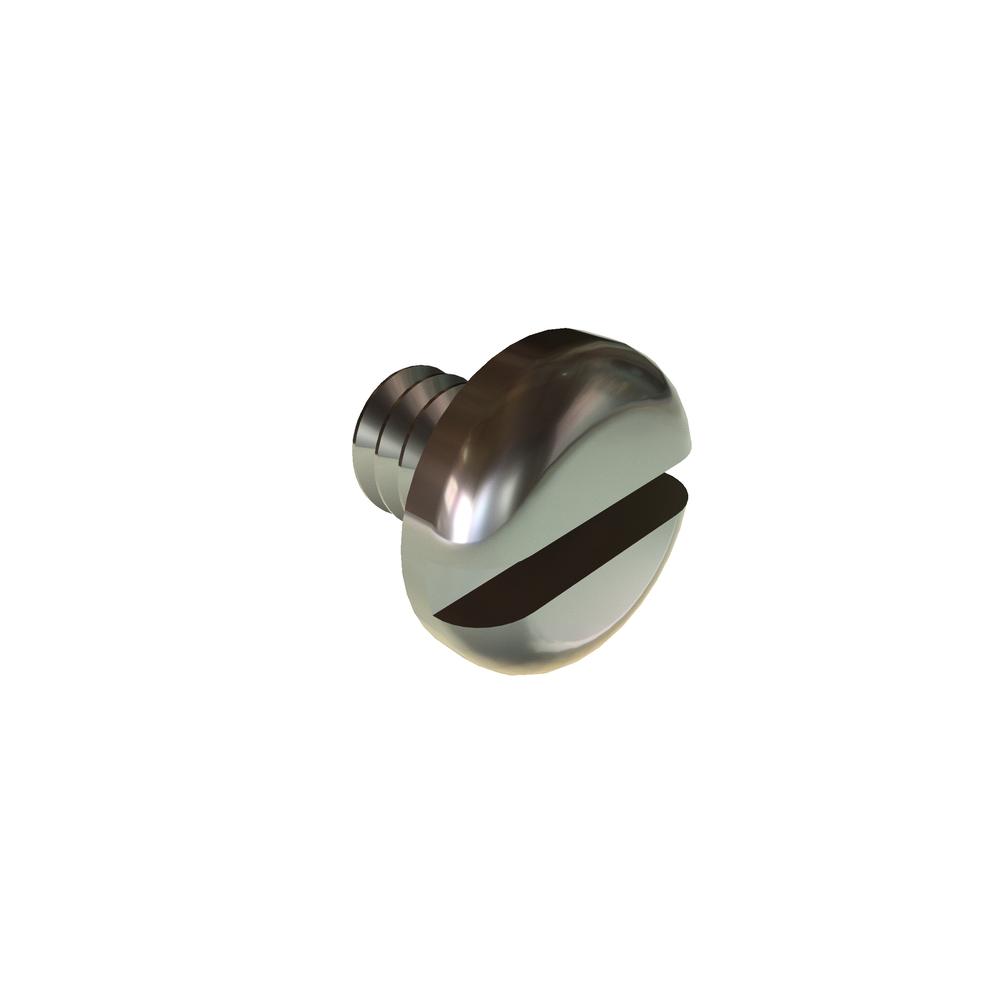

6C18SPMS
6-32 X 3/16 SLOT PAN HD SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.134 | $0.081 | $0.067 | $0.055 | $0.048 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Drive Type | Slotted |
| Head Radius (Min.) | 0.046in |
| Slot Depth (Min.) | 0.037in |
| Slot Depth (Max.) | 0.050in |
| Slot Width (Min.) | 0.039in |
| Slot Width (Max.) | 0.048in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91792A143 |
| Length | 0.18in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.082in |
| Head Height (Min.) | 0.072in |
