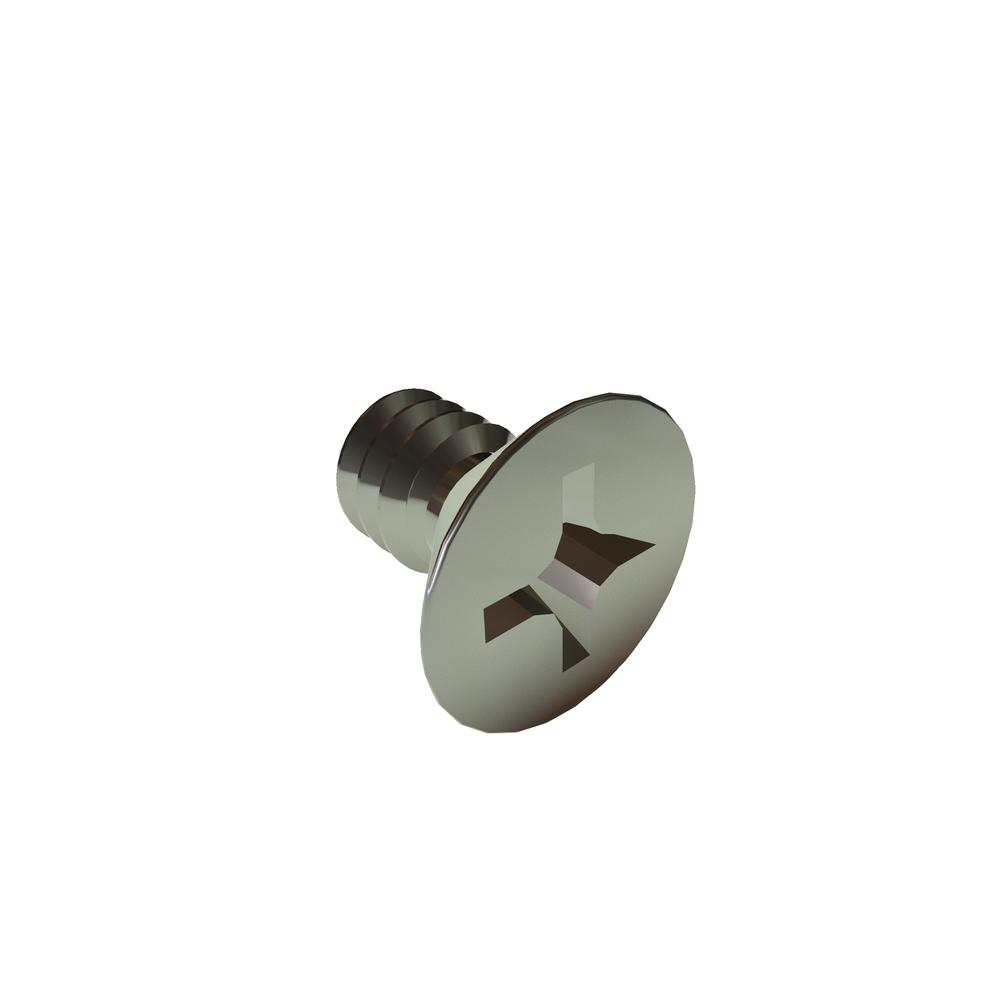

6-32 X 1/4 PHIL FLAT SST RoHS
6C25PFMS
| Item Id | 6C25PFMS |
| Description | 6-32 X 1/4 PHIL FLAT SST RoHS |
| Alternate Codes | 003498, 030995.0001, 0960-0048, 209597, 25-0011-04, 2601006-32, 2806-0212-04, 475-0002, 490-0081, 915-12017-00, E0022, MS51959-26 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91771A144 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.238in |
| Head Height | 0.083in |
| Head Type | Flat |
| Length | 0.25in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.095in |
| Recess Depth (Min.) | 0.072in |
| Recess Diameter | 0.168in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
