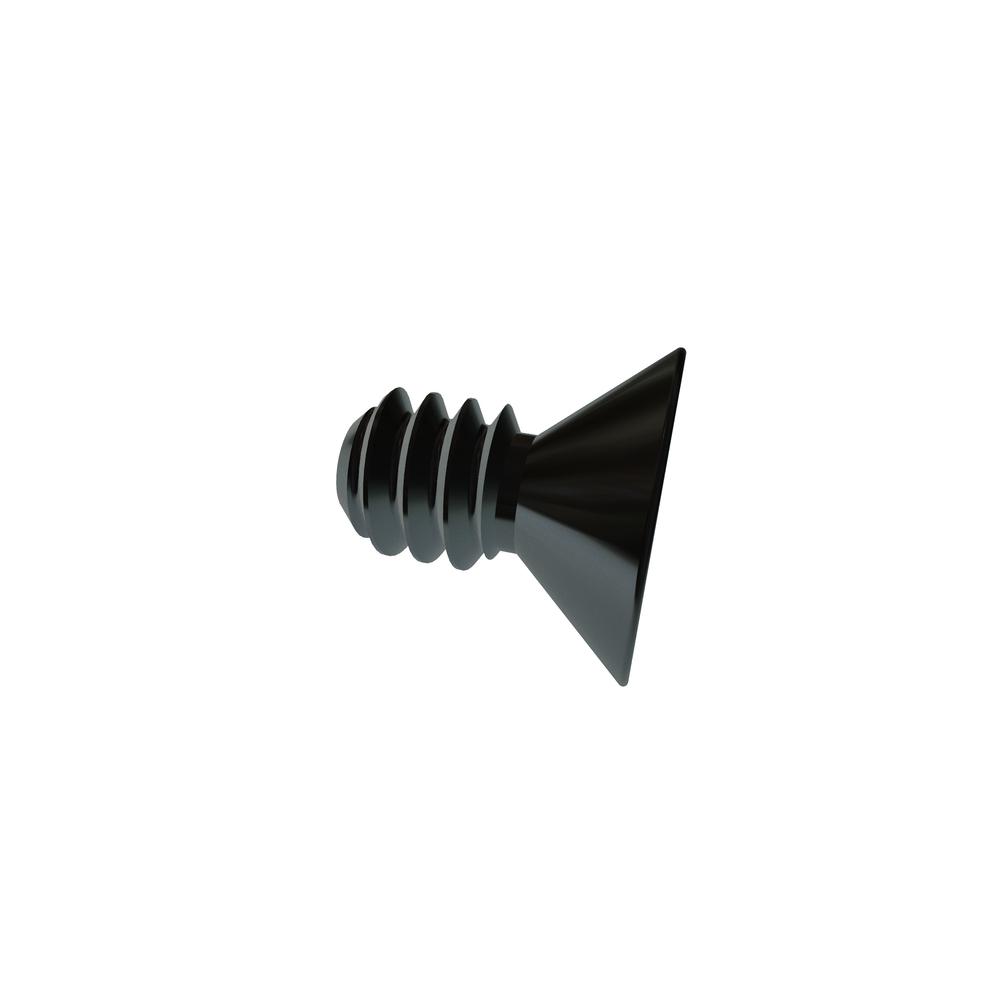

6-32 X 1/4 PHIL FLAT STL ZN CR3
6C25PFMZR
| Item Id | 6C25PFMZR |
| Description | 6-32 X 1/4 PHIL FLAT STL ZN RoHS |
| Alternate Codes | 011174, 037800, 262-000006-0250, 37094-001, 381-05062, 530-10605-03, 655, 702018-00, 780-00438, 82-0095-0, 82-0095-00, 90273A144, 93006-031 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90273A144 92703A251 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.238in |
| Head Height | 0.083in |
| Head Type | Flat |
| Length | 0.25in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.095in |
| Recess Depth (Min.) | 0.072in |
| Recess Diameter | 0.168in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
