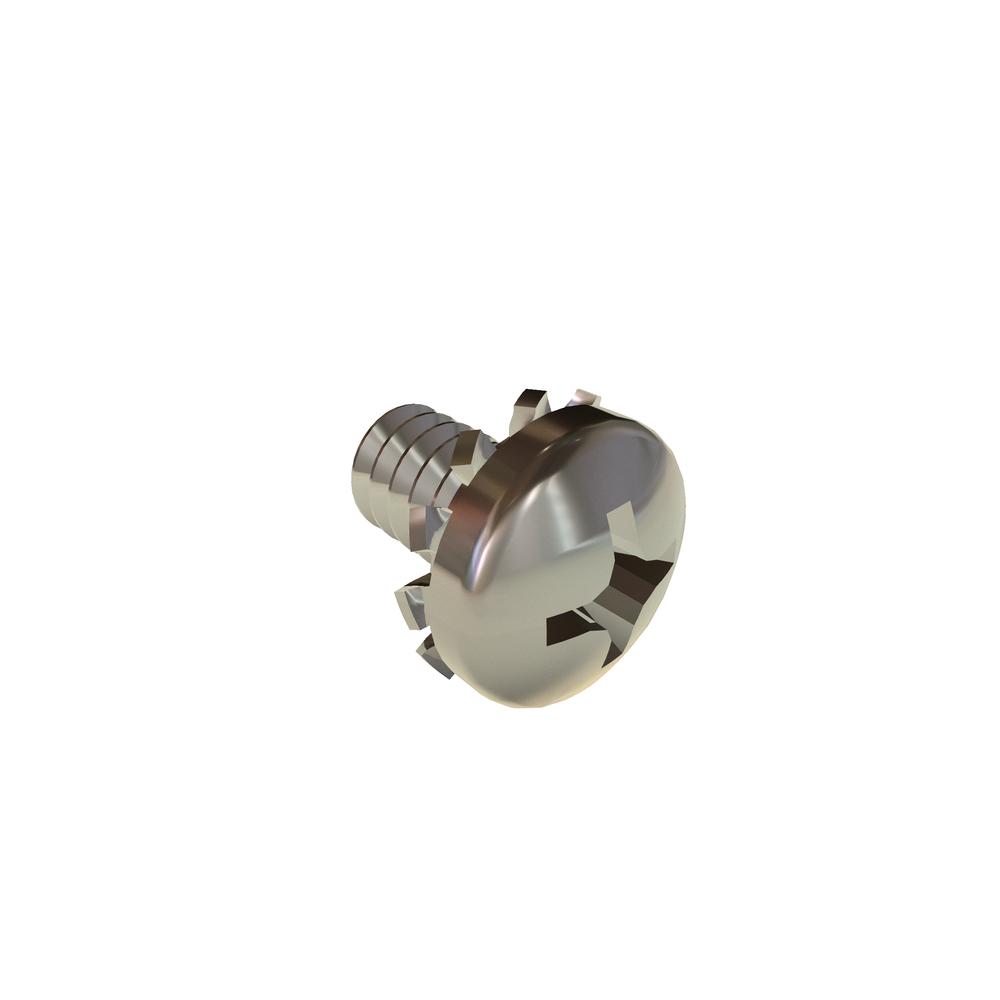

6-32 X 1/4 PHIL PAN EXT SEMS SST RoHS

6C25PPES

Item Id6C25PPES
Description6-32 X 1/4 PHIL PAN EXT SEMS SST RoHS
Alternate Codes581952-03
Extended Description
PackagingEA
Additional Industry Cross Reference95345A458
BrandVARIED
Drive Size2
Drive TypePhillips
FinishPlain
Head Diameter (Max.)0.270in
Head Diameter (Min.)0.256in
Head Height (Max.)0.097in
Head Height (Min.)0.087in
Head Radius (Min.)0.015in
Head TypePan
Length1/4in
Lock Washer Outside Diameter (Max.)0.285in
Lock Washer Outside Diameter (Min.)0.270in
Lock Washer Thickness (Max.)0.022in
Lock Washer Thickness (Min.)0.015in
MaterialStainless Steel
Meets (Standard)ASME B18.6.3
Nominal Diameter0.138in
Penetration Depth (Max.)0.080in
Penetration Depth (Min.)0.055in
Recess Diameter0.159in
RoHSCompliant
Thread Size6-32
Thread TypeUnified Coarse Thread (UNC)
UnitsInch
Washer TypeExternal Tooth Lock Washer
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
