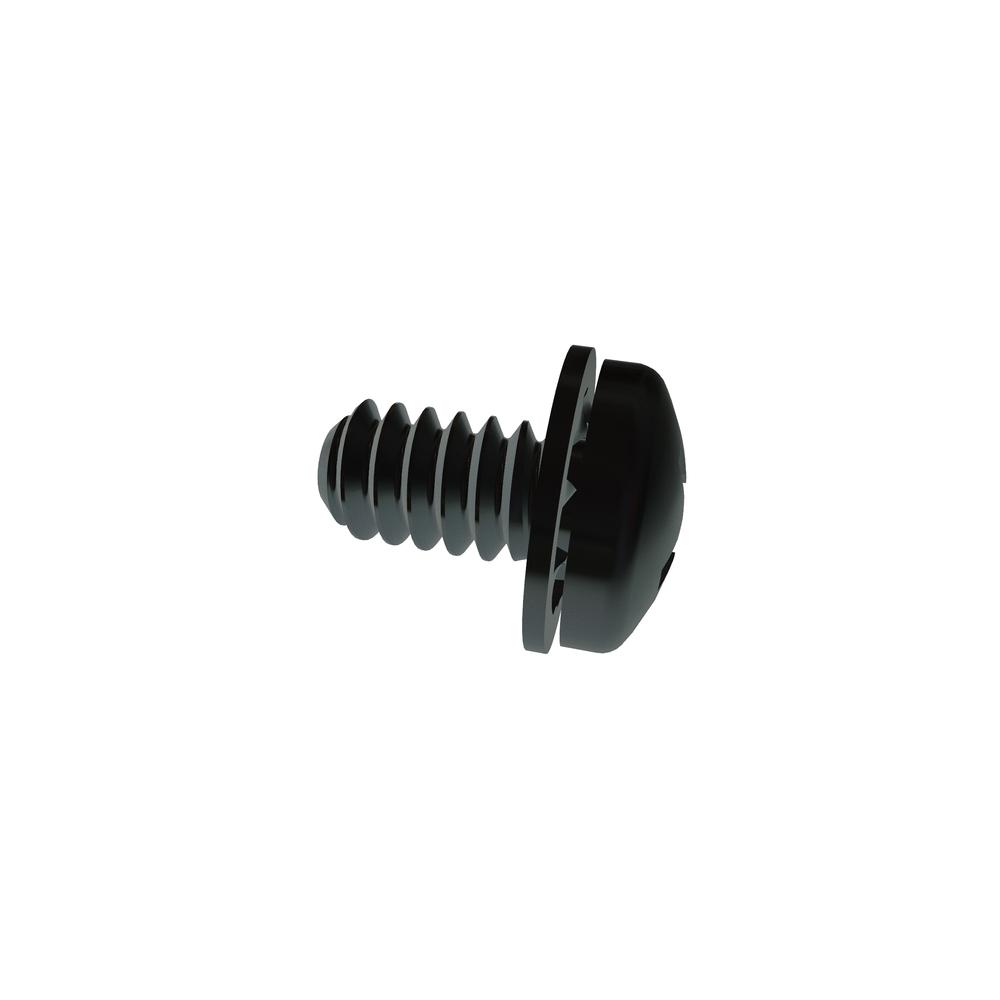

Image for reference purposes only. Actual product may vary.
6C25PPIZR
6-32 X 1/4 PHIL PAN INT SEMS STL ZN CR3
Alternate Codes: 12-0010-005, 24779, 25-1516, 300-00012-01, 300607, 50531-02, 6C25PPIZt, 700030-00, 8569442, SSC240-4119-01
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.140 | $0.084 | $0.070 | $0.057 | $0.051 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 1/4in |
| Thread Size | 6-32 |
| Finish | Zinc Cr3 |
| Recess Diameter | 0.159in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.022in |
| Lock Washer Outside Diameter (Min.) | 0.278in |
| Lock Washer Outside Diameter (Max.) | 0.288in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Head Radius (Min.) | 0.015in |
| Lock Washer Thickness (Min.) | 0.016in |
