Olander
Call 1-800-538-1500

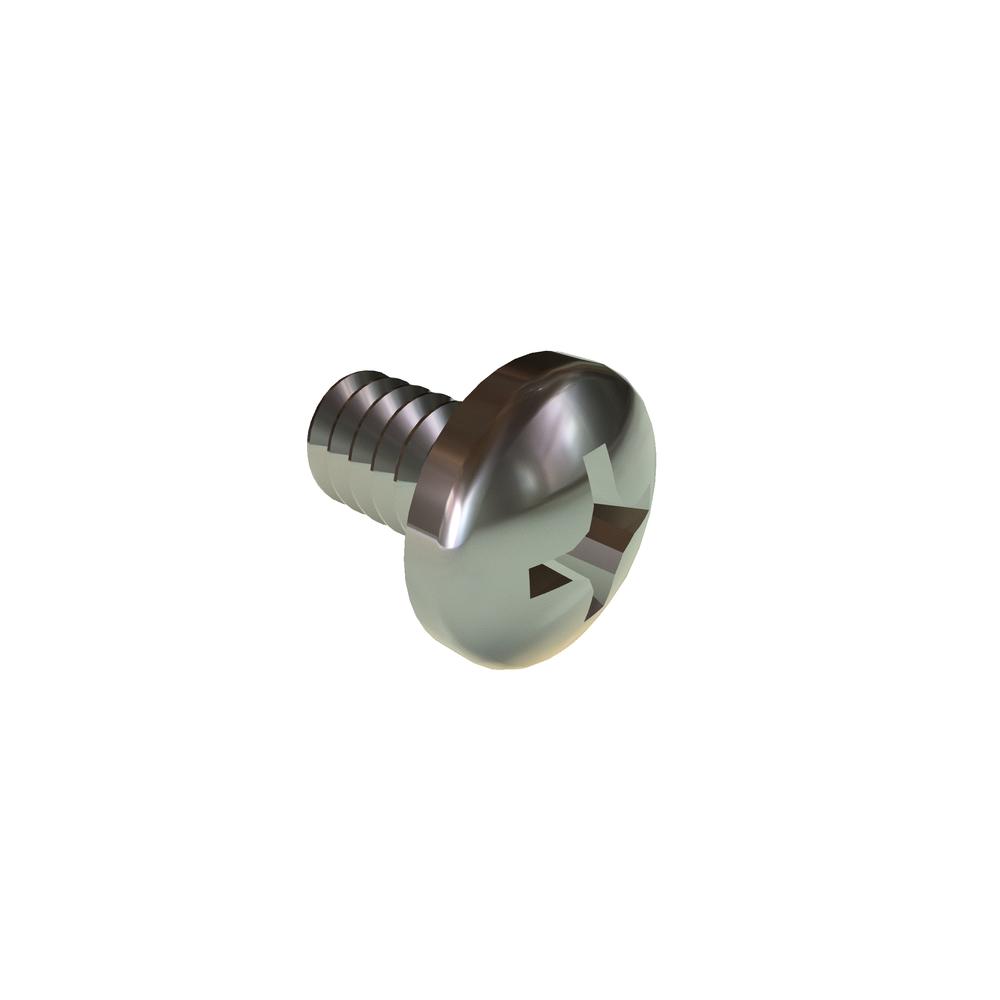

6-32 X 1/4 PH PAN SST RoHS

6C25PPMS

Item Id6C25PPMS
Description6-32 X 1/4 PHIL PAN SST RoHS
Alternate Codes002741, 01427-1, 0960-0015, 100-03-139, 1030046, 10556, 124988, 1387, 25-0010-04, 2601026-32, 2806-0112-04, 300-00771-104, 3690-01125, 4108870480, 477-0023, 51052-06044, 580-63206, 581917-04, 6000026-604, 613-5046, 700046-00, 701-0312-004, 900290, 901200-0004, FS-E-04-2A, FSE-04-2A, P0989
Extended Description
PackagingEA
Additional Industry Cross Reference91772A144
BrandVARIED
Drive Size2
Drive TypePhillips
FinishPlain
Head Diameter (Max.)0.270in
Head Diameter (Min.)0.256in
Head Height (Max.)0.097in
Head Height (Min.)0.087in
Head Radius (Min.)0.015in
Head TypePan
MaterialStainless Steel
Meets (Standard)ASME B18.6.3
Nominal Diameter0.138in
Recess Depth (Max.)0.080in
Recess Depth (Min.)0.055in
Recess Diameter0.159in
RoHSCompliant
Thread Size6-32
Thread TypeUnified Coarse Thread (UNC)
UnitsInch
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
