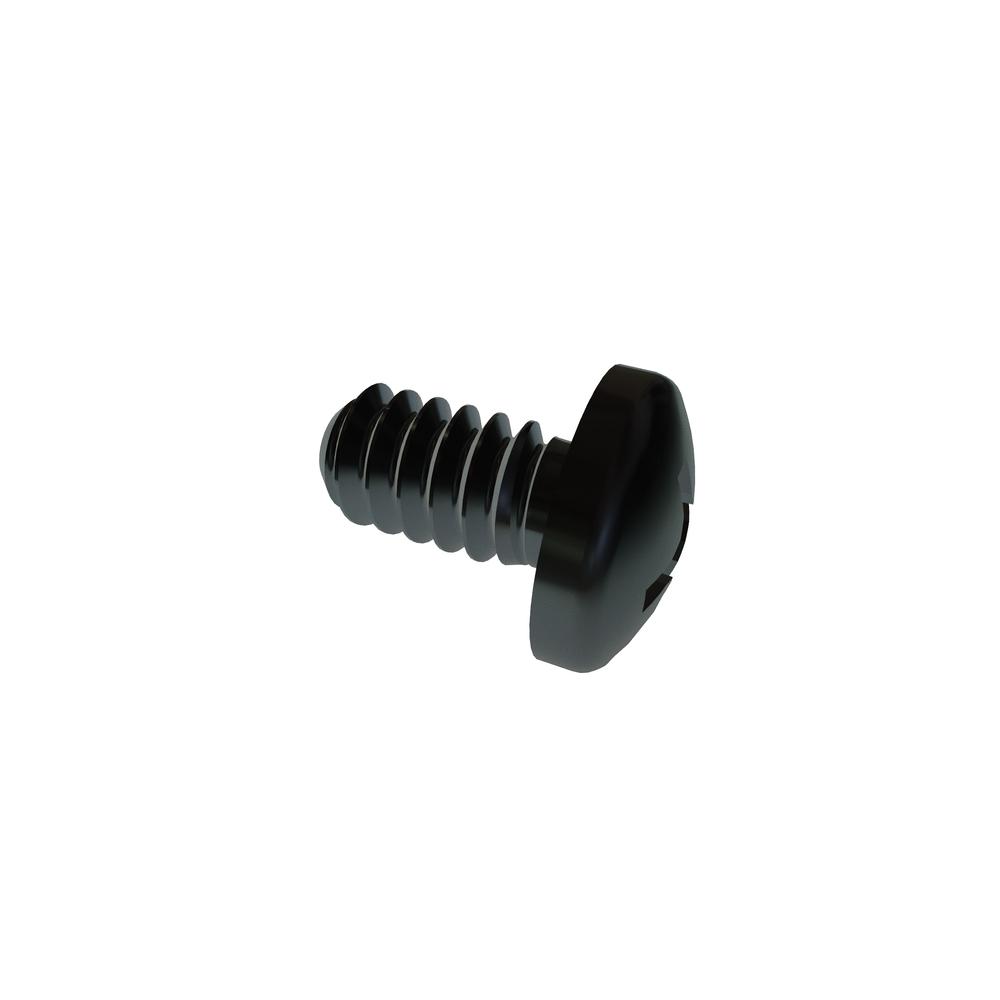

6-32 X 1/4 PH PAN STL ZN CR3
6C25PPMZR
| Item Id | 6C25PPMZR |
| Description | 6-32 X 1/4 PHIL PAN STL ZN RoHS |
| Alternate Codes | 001228, 0020, 00256-0004, 012070, 031-131210, 046787, 11239, 16-0002, 172-0002-00, 1901-0071, 20314144, 229-31006-040, 232-0007-00, 25318, 262-000001-0250, 2831-023-08, 4300884-05, 47-102377-01, 48-060, 500154-18, 580-63204, 60-0009-001, 600-63204, 60286, 656, 6C25PPMZt, 700009-00, 73-H122-00, 780-00367, 8000-900-012, 90272A144, 99-10661-104, D10651, HS306 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 90272A144 90272A144 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Head Radius (Min.) | 0.015in |
| Head Type | Pan |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.080in |
| Recess Depth (Min.) | 0.055in |
| Recess Diameter | 0.159in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
