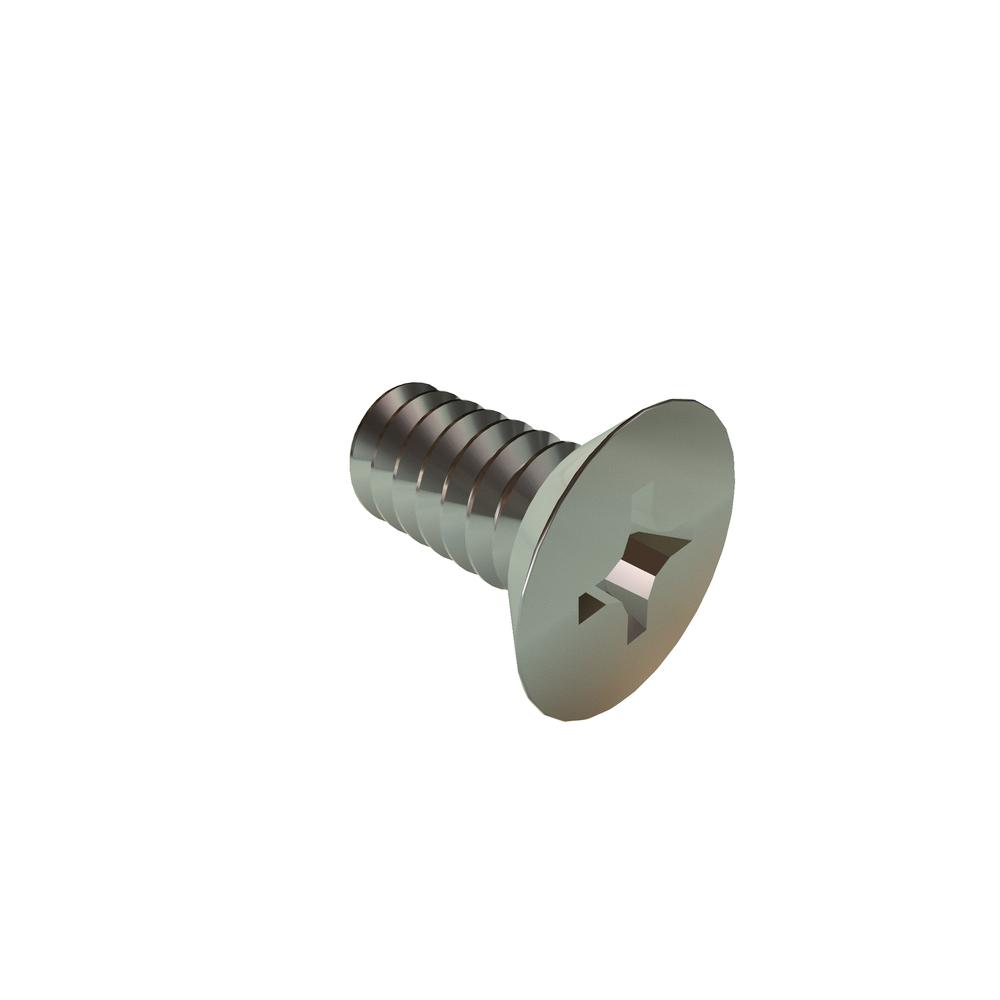

Image for reference purposes only. Actual product may vary.
6C31PFUS
6-32 X 5/16 PHIL FLAT U/C SST RoHS
Alternate Codes: 1000-0098, 91099A210
6-32 X 5/16 Phillips Flat Head Undercut Stainless Steel RoHS
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.117 | $0.072 | $0.052 | $0.040 | $0.037 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 0.31in |
| Thread Size | 6-32 |
| Finish | Plain |
| Material | Stainless Steel |
| Drive Type | Phillips |
| Head Height (Min.) | 0.048in |
| Head Height (Max.) | 0.059in |
| Drive Size | 2 |
| Recess Depth (Max.) | 0.067in |
| Additional Industry Cross Reference | 91099A210 |
| Recess Depth (Min.) | 0.044in |
| RoHS | Compliant |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Flat Undercut |
| Recess Diameter | 0.140in |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.238in |
