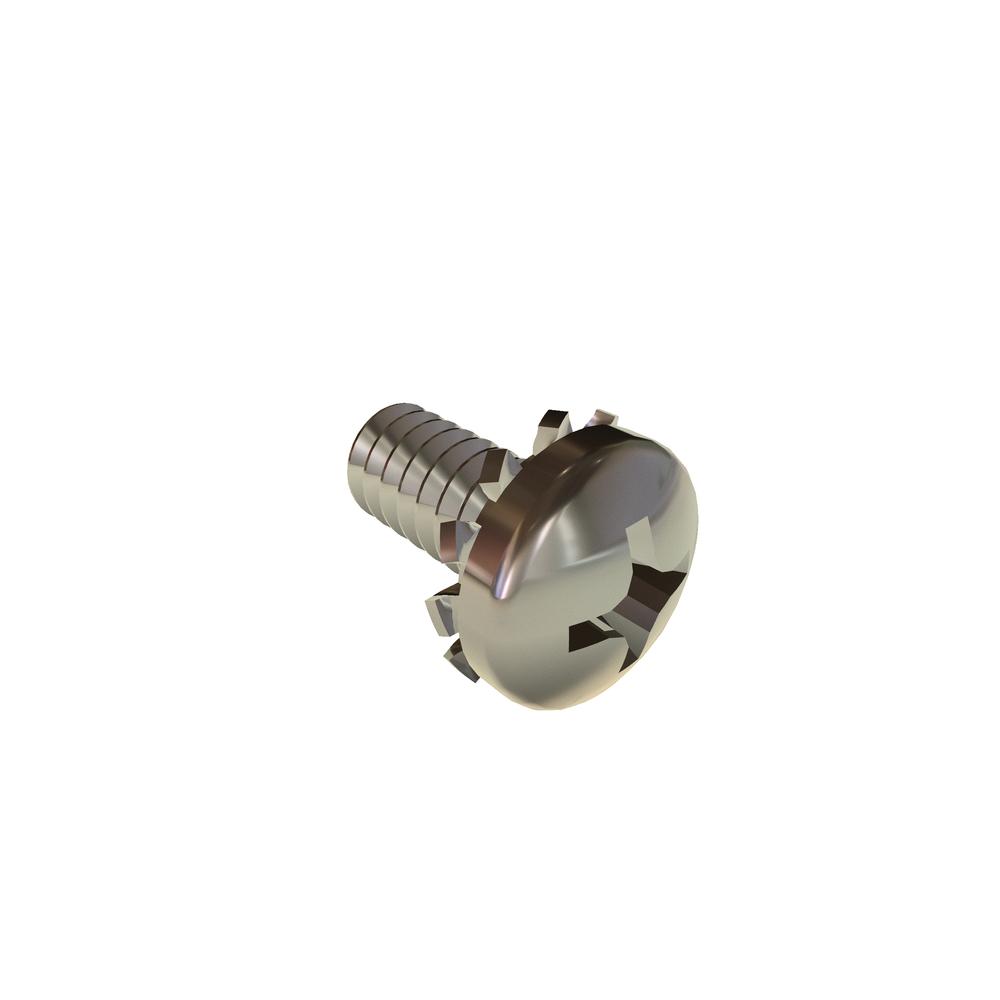

6-32 X 5/16 PHIL PAN EXT SEMS SST RoHS
6C31PPES
| Item Id | 6C31PPES |
| Description | 6-32 X 5/16 PHIL PAN EXT SEMS SST RoHS |
| Alternate Codes | 2826-9914 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 95345A464 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Head Radius (Min.) | 0.015in |
| Head Type | Pan |
| Length | 5/16in |
| Lock Washer Outside Diameter (Max.) | 0.285in |
| Lock Washer Outside Diameter (Min.) | 0.270in |
| Lock Washer Thickness (Max.) | 0.022in |
| Lock Washer Thickness (Min.) | 0.015in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Penetration Depth (Max.) | 0.080in |
| Penetration Depth (Min.) | 0.055in |
| Recess Diameter | 0.159in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Washer Type | External Tooth Lock Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
