6C31PPQS

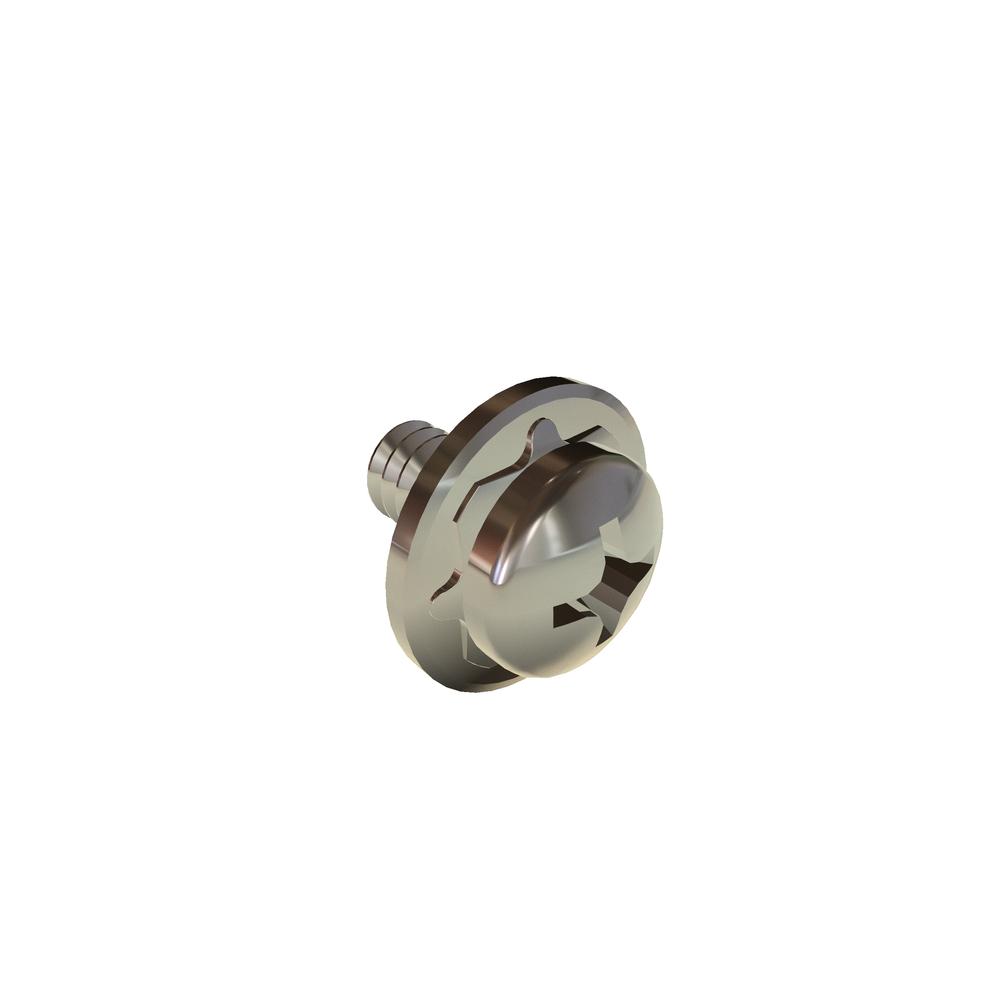

6-32 X 5/16 PH PAN SQ CONE SEMS SST RoHS
Alternate Codes: 91241A529
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.364 | $0.192 | $0.152 | $0.140 | $0.117 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Height (Min.) | 0.039in |
| Lock Washer Height (Max.) | 0.061in |
| Lock Washer Outside Diameter (Min.) | 0.307in |
| Lock Washer Outside Diameter (Max.) | 0.320in |
| Washer Type | Square Cone Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Recess Diameter | 0.159in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91241A529 |
| Length | 5/16in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Lock Washer Thickness (Min.) | 0.025in |
