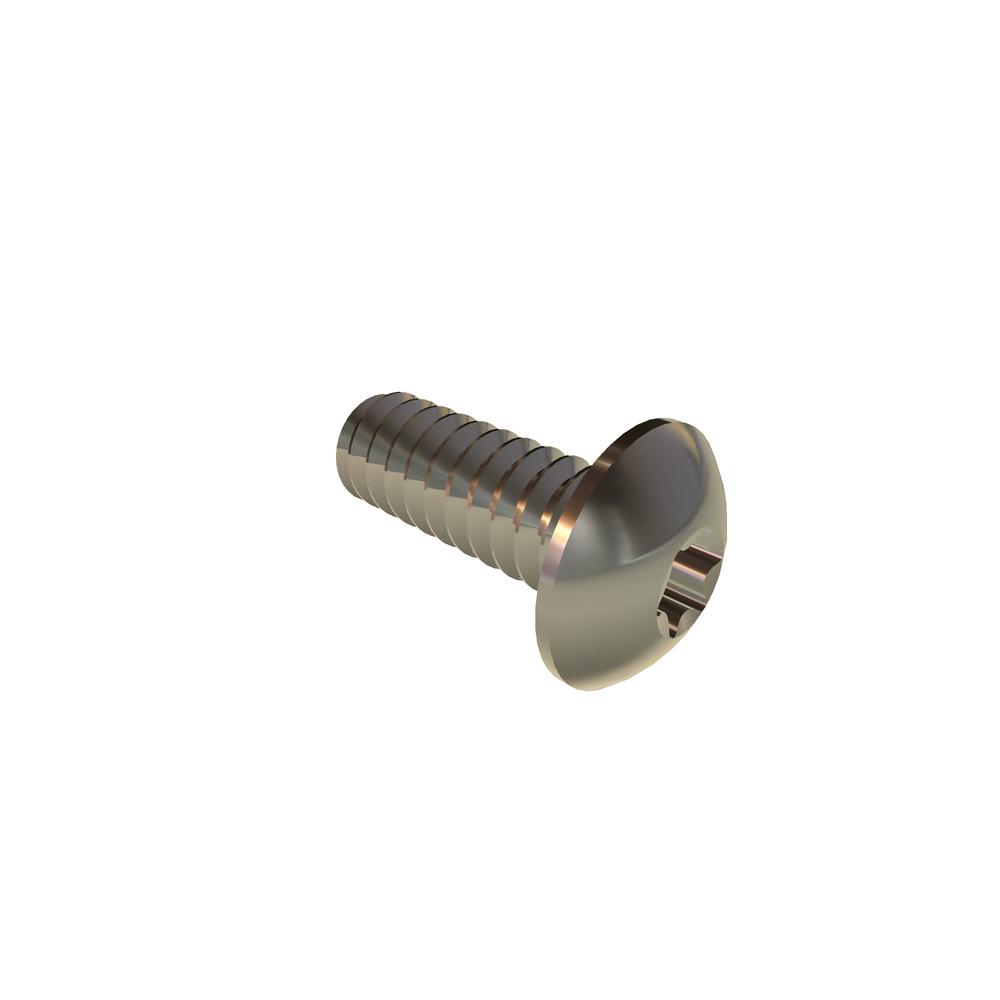

6C37BHXS
6-32 X 3/8 BUT HD TORX SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.662 | $0.364 | $0.303 | $0.260 | $0.214 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Button |
| Drive Type | Torx Socket |
| Drive Size | T10 |
| Fillet Transition Diameter (Min.) | 0.148in |
| Fillet Transition Diameter (Max.) | 0.158in |
| Head Side Height (Ref.) | 0.015in |
| Key Engagement | 0.044in |
| Torx Socket Size | 0.107in |
| Brand | VARIED |
| Length | 3/8in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.250in |
| Head Height (Max.) | 0.073in |
| Head Height (Min.) | 0.063in |
