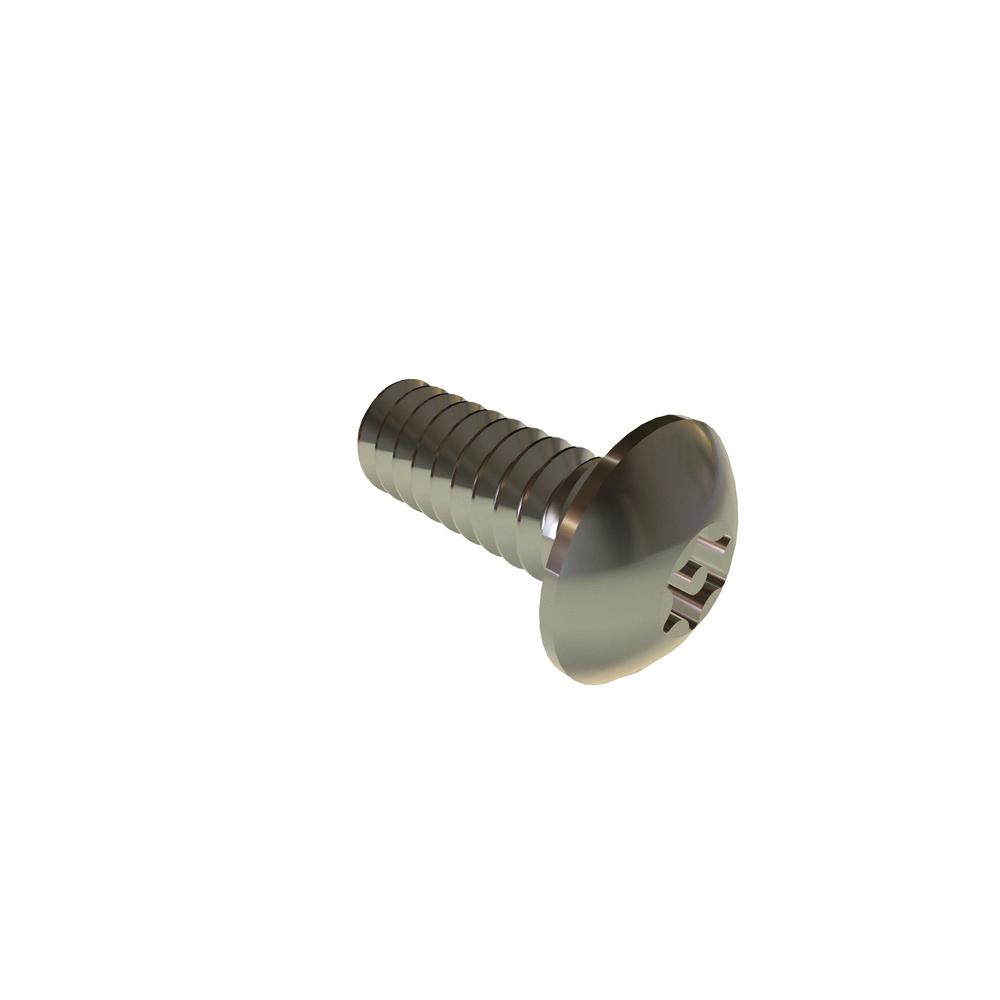

6C37BHXS/T
6-32 X 3/8 BUT HD TORX T-R SST RoHS
Alternate Codes: 709-0003-008
TAMPER-RESISTANT
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.642 | $0.408 | $0.375 | $0.346 | $0.292 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Button |
| Drive Type | Torx |
| Fillet Transition Diameter (Min.) | 0.148in |
| Fillet Transition Diameter (Max.) | 0.158in |
| Key Engagement | 0.040in |
| Head Side Height | 0.015in |
| Pin Diameter | 0.028in |
| Torx Socket Size | 0.096in |
| Brand | VARIED |
| Length | 0.37in |
| RoHS | Compliant |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.250in |
| Head Height (Max.) | 0.073in |
| Head Height (Min.) | 0.063in |
