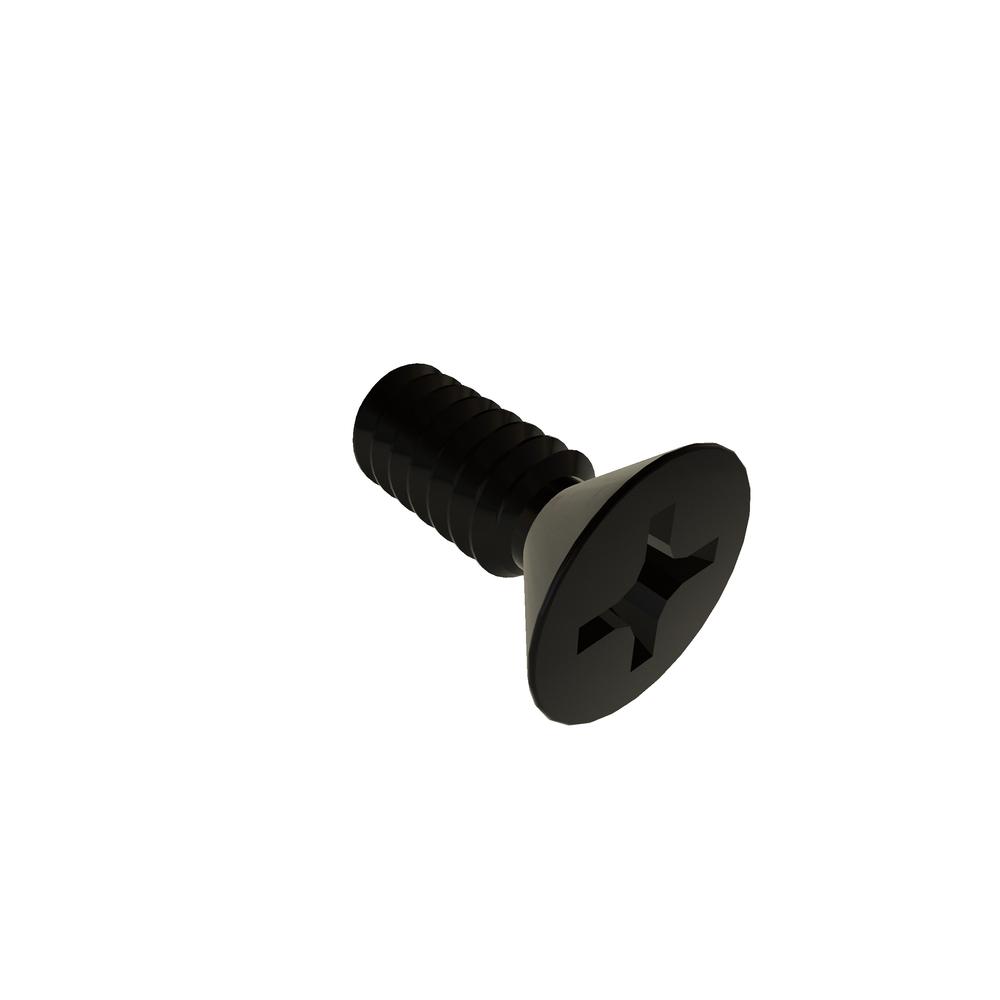

6C37PFMZB
6-32 X 3/8 PHIL FLAT STL BLK RoHS
Alternate Codes: 1000-0047, 25538, 516021, 73-H165-00, ZZ1212P
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.222 | $0.133 | $0.111 | $0.091 | $0.080 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.168in |
| Head Height | 0.083in |
| Recess Depth (Min.) | 0.072in |
| Recess Depth (Max.) | 0.095in |
| Brand | VARIED |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.238in |
