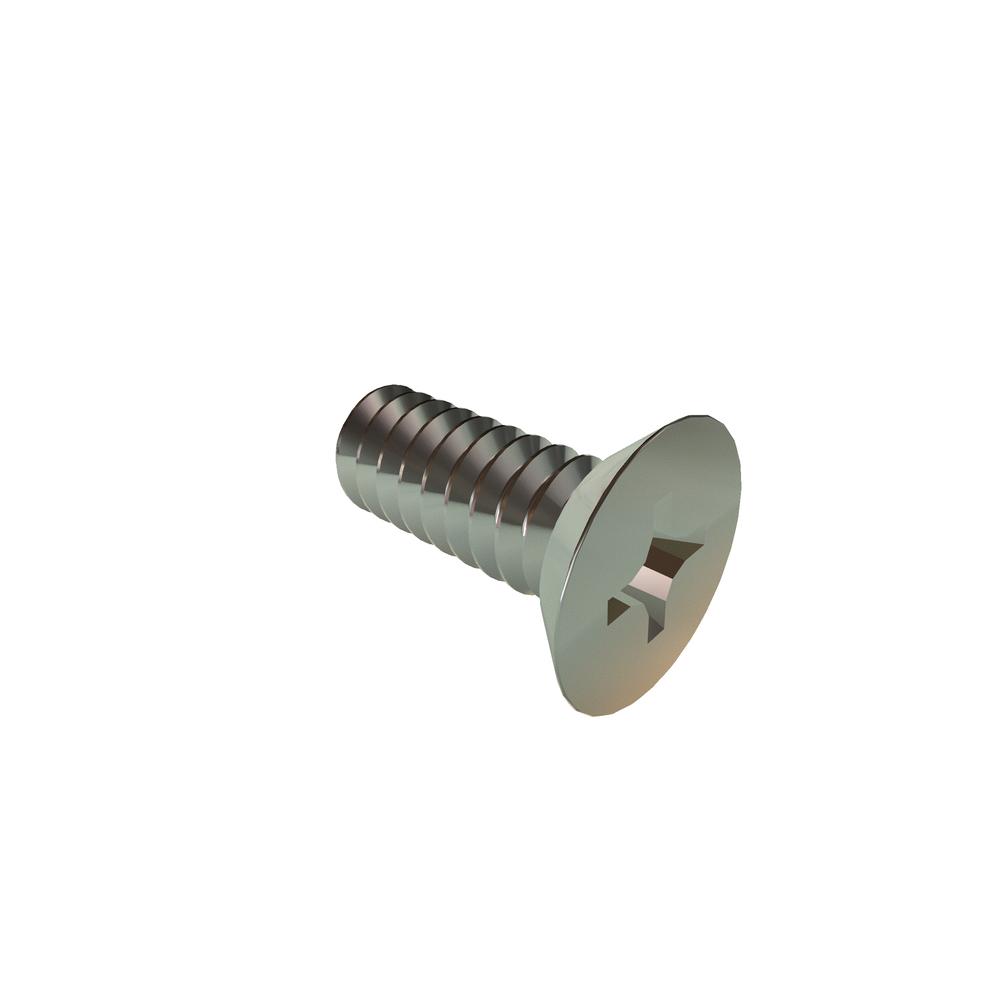

6C37PFUS
6-32 X 3/8 PHIL FLAT U/C SST RoHS
Alternate Codes: 360040-0000, 7104-0606, 91099A215
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.128 | $0.077 | $0.064 | $0.053 | $0.046 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Flat Undercut |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.140in |
| Recess Depth (Min.) | 0.044in |
| Recess Depth (Max.) | 0.067in |
| Brand | VARIED |
| Additional Industry Cross Reference | 91099A215 |
| Length | 0.37in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.238in |
| Head Height (Max.) | 0.059in |
| Head Height (Min.) | 0.048in |
