6C37PPEZR

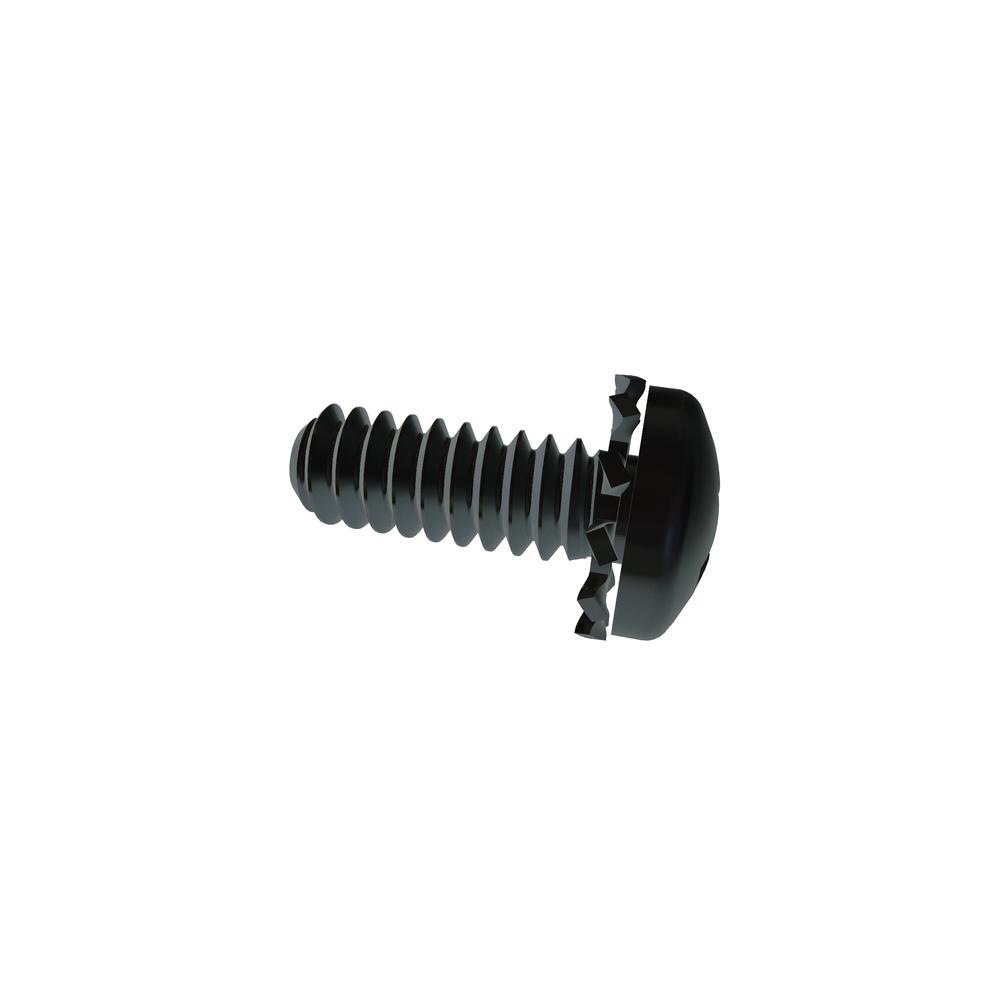

6-32 X 3/8 PHIL PAN EXT SEMS STL ZN CR3
Alternate Codes: 0060-173, 031G139321, 1505-0116, 18-200118-05, 205-0107-01, 207152, 20857, 232-5201-00, 235-31006-060, 57156-06, 6C37PPEZt, 700021, 82-0040-00, 93006-004, 93006-309, HS336
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.172 | $0.103 | $0.086 | $0.070 | $0.062 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.022in |
| Lock Washer Outside Diameter (Min.) | 0.270in |
| Lock Washer Outside Diameter (Max.) | 0.285in |
| Washer Type | External Tooth Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Recess Diameter | 0.159in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90402A146 |
| Length | 3/8in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Lock Washer Thickness (Min.) | 0.015in |
