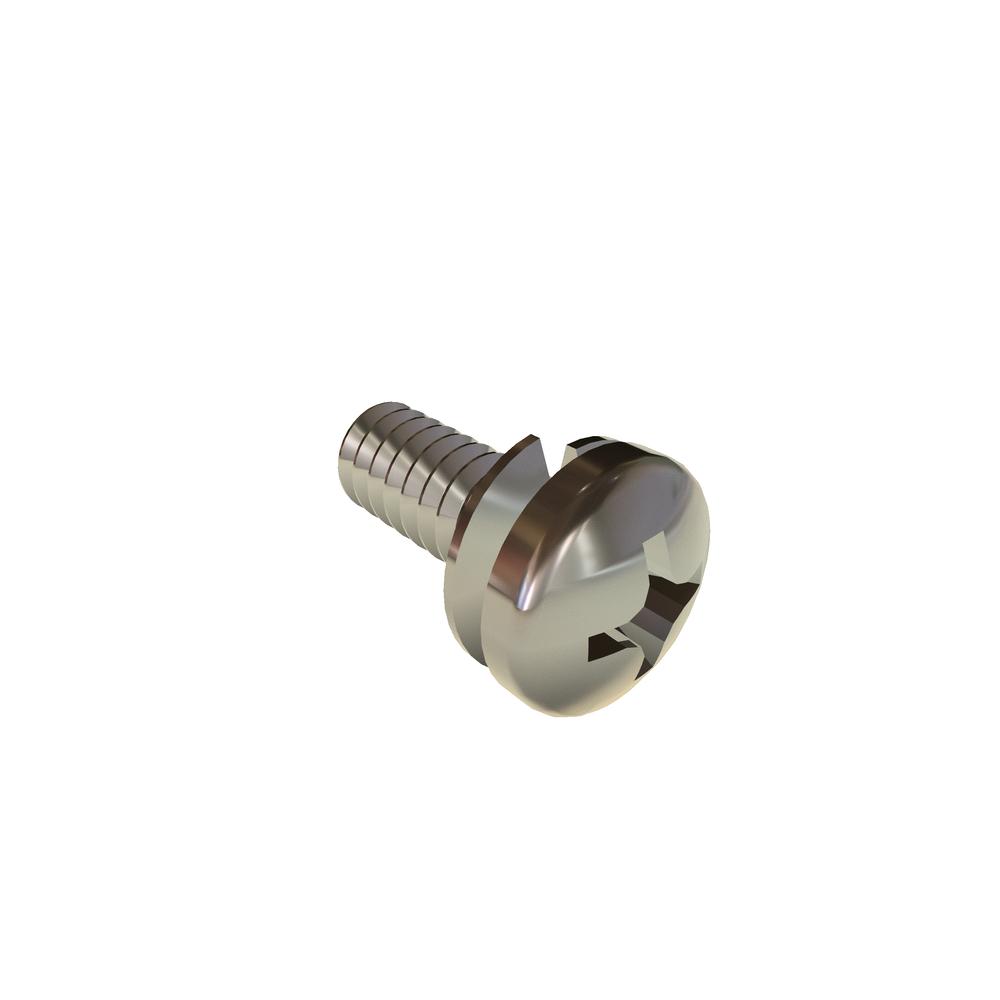

Image for reference purposes only. Actual product may vary.
6C37PPLS
6-32 X 3/8 PHIL PAN SPLIT L/W SEMS SST
Alternate Codes: 96909A446
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 3/8in |
| Thread Size | 6-32 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 0.159in |
| Washer Type | Split Lock Washer |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.062in |
| Lock Washer Outside Diameter (Min.) | 0.248in |
| Lock Washer Outside Diameter (Max.) | 0.261in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Head Radius (Min.) | 0.015in |
| Additional Industry Cross Reference | 96909A446 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Lock Washer Thickness (Min.) | 0.034in |
| Lock Washer Inside Diameter (Min.) | 0.124in |
| Lock Washer Inside Diameter (Max.) | 0.129in |
