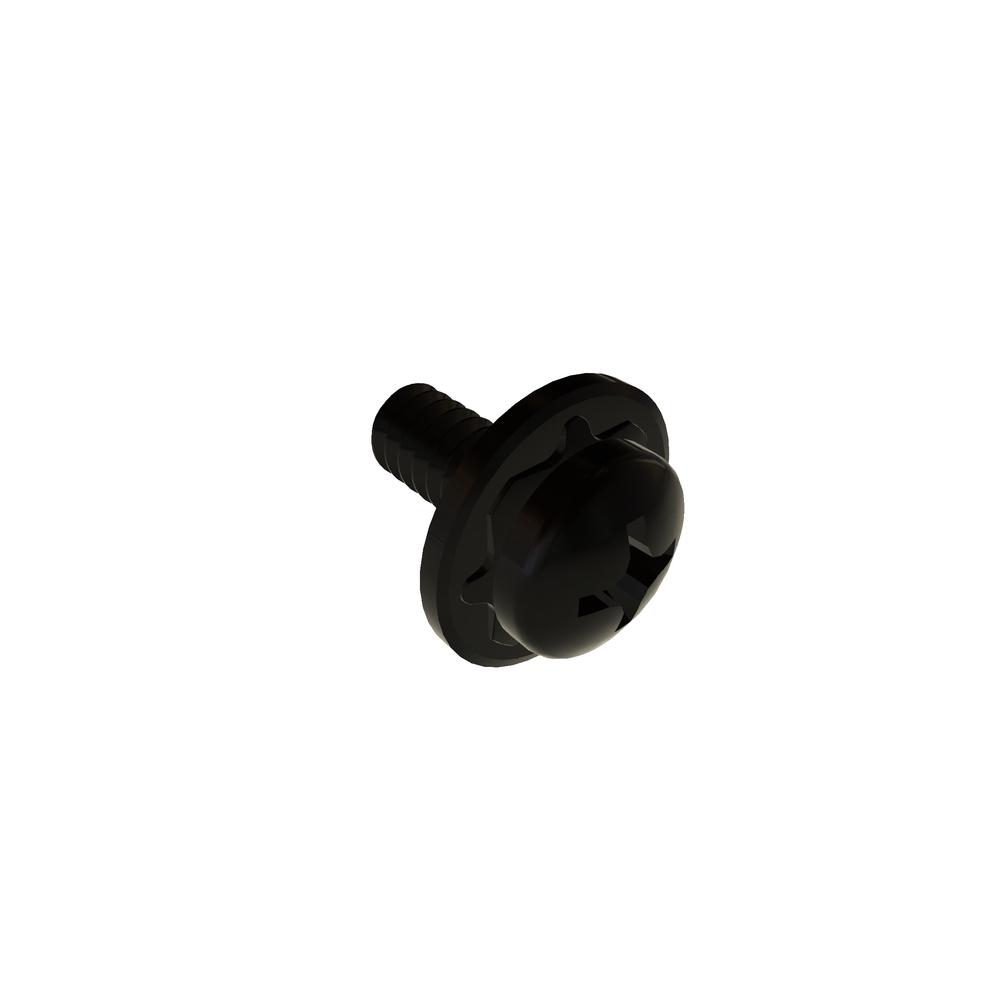

Image for reference purposes only. Actual product may vary.
6C37PPQZB
6-32 X 3/8 PH PAN SQ CONE SEMS STL BLK
Alternate Codes: N/A
OX RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $0.216 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 3/8in |
| Thread Size | 6-32 |
| Finish | Black Oxide |
| Brand | VARIED |
| Recess Diameter | 0.159in |
| Washer Type | Square Cone Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Lock Washer Height (Min.) | 0.039in |
| Lock Washer Height (Max.) | 0.061in |
| Lock Washer Outside Diameter (Min.) | 0.307in |
| Lock Washer Outside Diameter (Max.) | 0.320in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Head Radius (Min.) | 0.015in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Lock Washer Thickness (Min.) | 0.025in |
