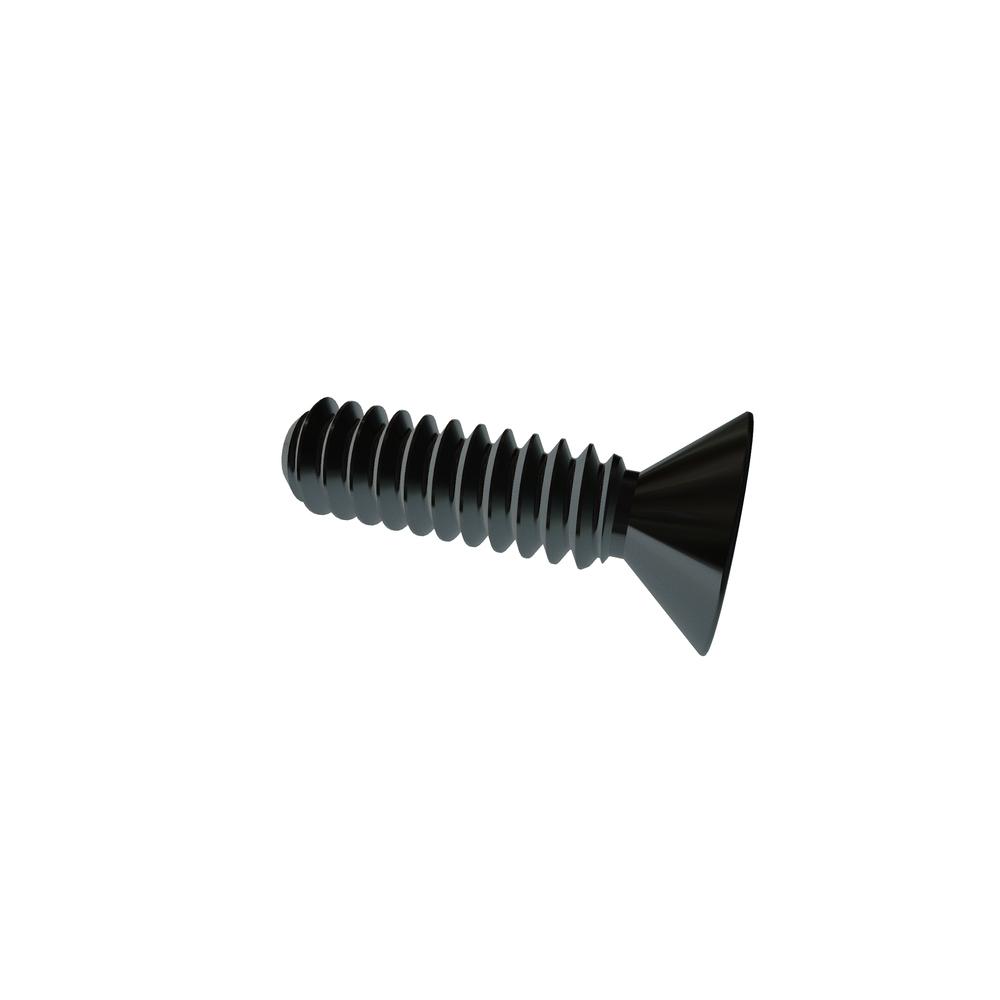

6-32 X 1/2 PHIL FLAT STL ZN CR3
6C50PFMZR
| Item Id | 6C50PFMZR |
| Description | 6-32 X 1/2 PHIL FLAT STL ZN CR3 RoHS |
| Alternate Codes | 001257, 067911, 100-04-264, 12-221106-08, 25322, 302-00769-108, 6C50PFMZt, 71062050, 90273A148, HS328 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 90273A148 92703A255 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.238in |
| Head Height | 0.083in |
| Head Type | Flat |
| Length | 0.50in |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.095in |
| Recess Depth (Min.) | 0.072in |
| Recess Diameter | 0.168in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
