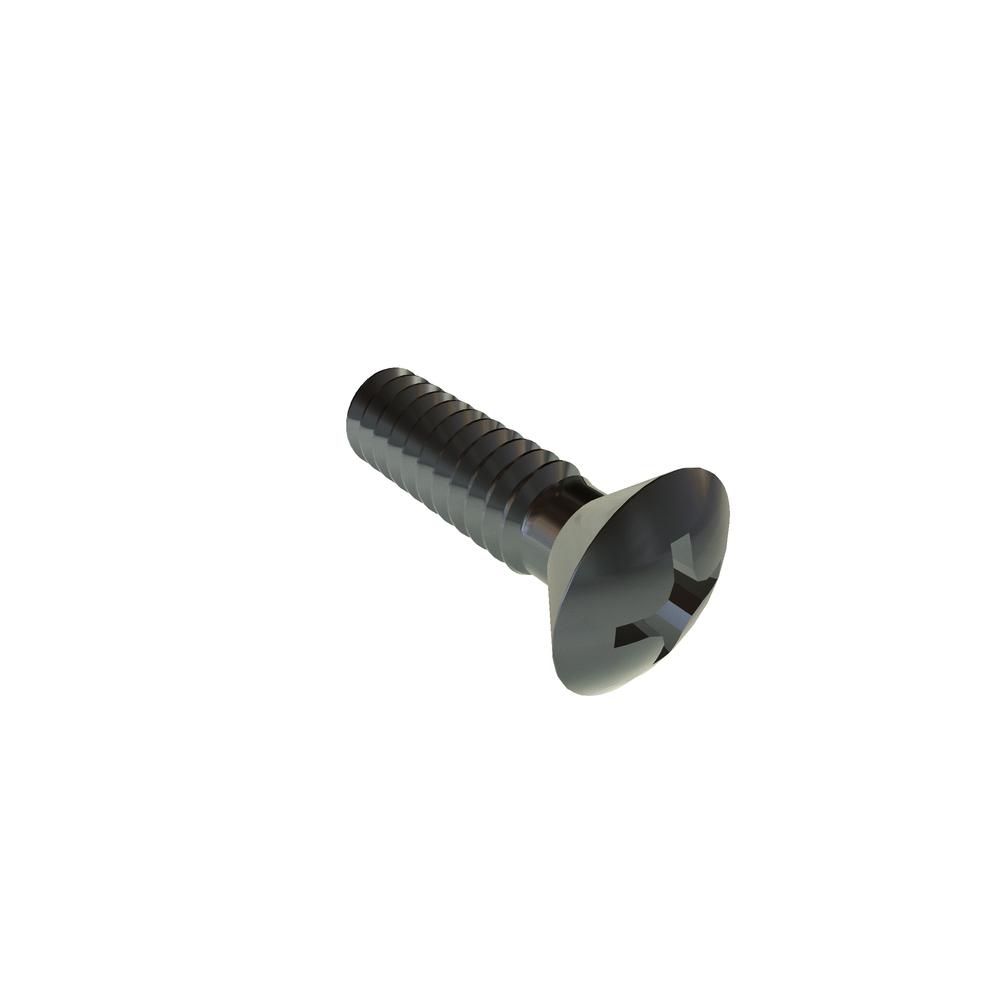

Image for reference purposes only. Actual product may vary.
6C50POMZN
6-32 X 1/2 PHIL OVAL STL NI
Alternate Codes: N/A
6-32 X 1/2 Phillips Oval Head Steel Nickel Plated RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 0.50in |
| Thread Size | 6-32 |
| Finish | Nickel |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Oval |
| Recess Diameter | 0.172in |
| Slot Depth (Min.) | 0.060in |
| Slot Depth (Max.) | 0.074in |
| Slot Width (Min.) | 0.039in |
| Slot Width (Max.) | 0.048in |
| Head Side Height (Ref.) | 0.083in |
| Head Height | 0.128in |
| Recess Depth (Min.) | 0.069in |
| Recess Depth (Max.) | 0.094in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.238in |
| Crown Height | 0.045in |
