6C50PPIZB

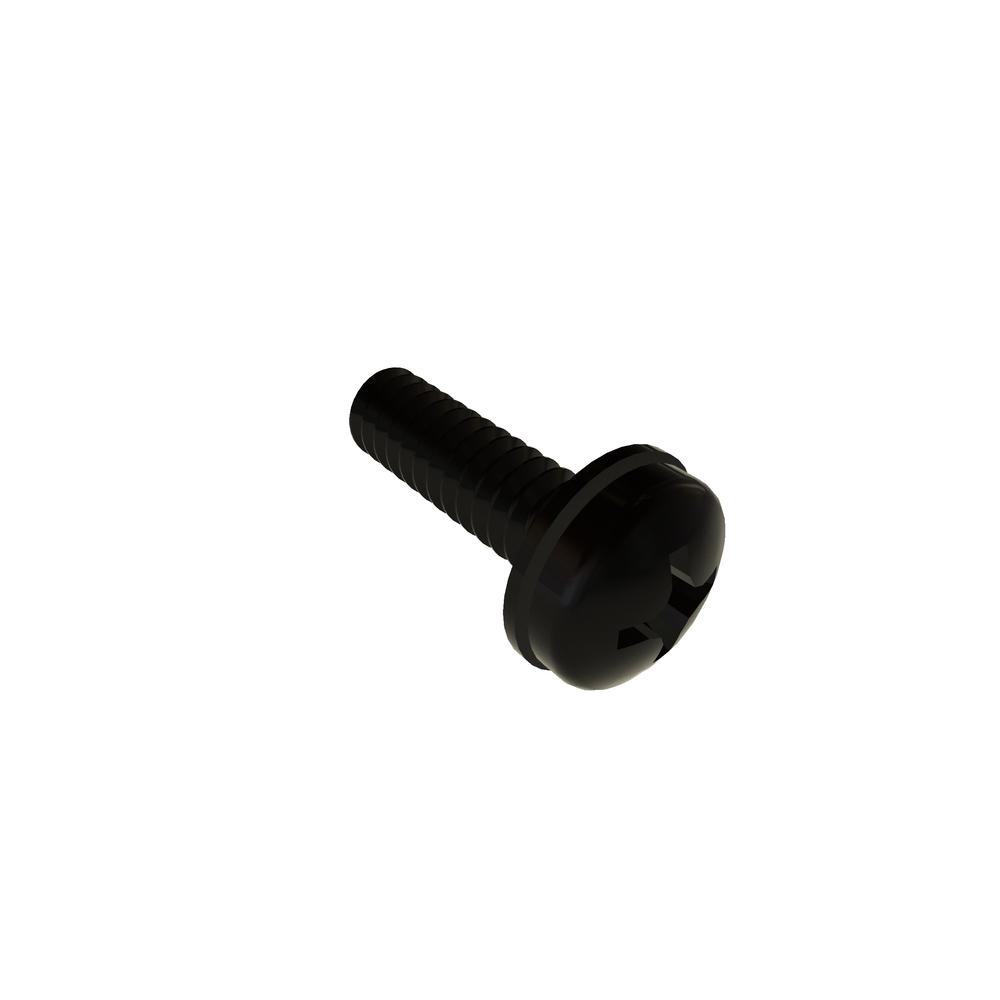

6-32 X 1/2 PHIL PAN INT SEMS STL BLK
Alternate Codes: 23077
RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 6-32 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.022in |
| Lock Washer Outside Diameter (Min.) | 0.278in |
| Lock Washer Outside Diameter (Max.) | 0.288in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Recess Diameter | 0.159in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Length | 1/2in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Lock Washer Thickness (Min.) | 0.016in |
