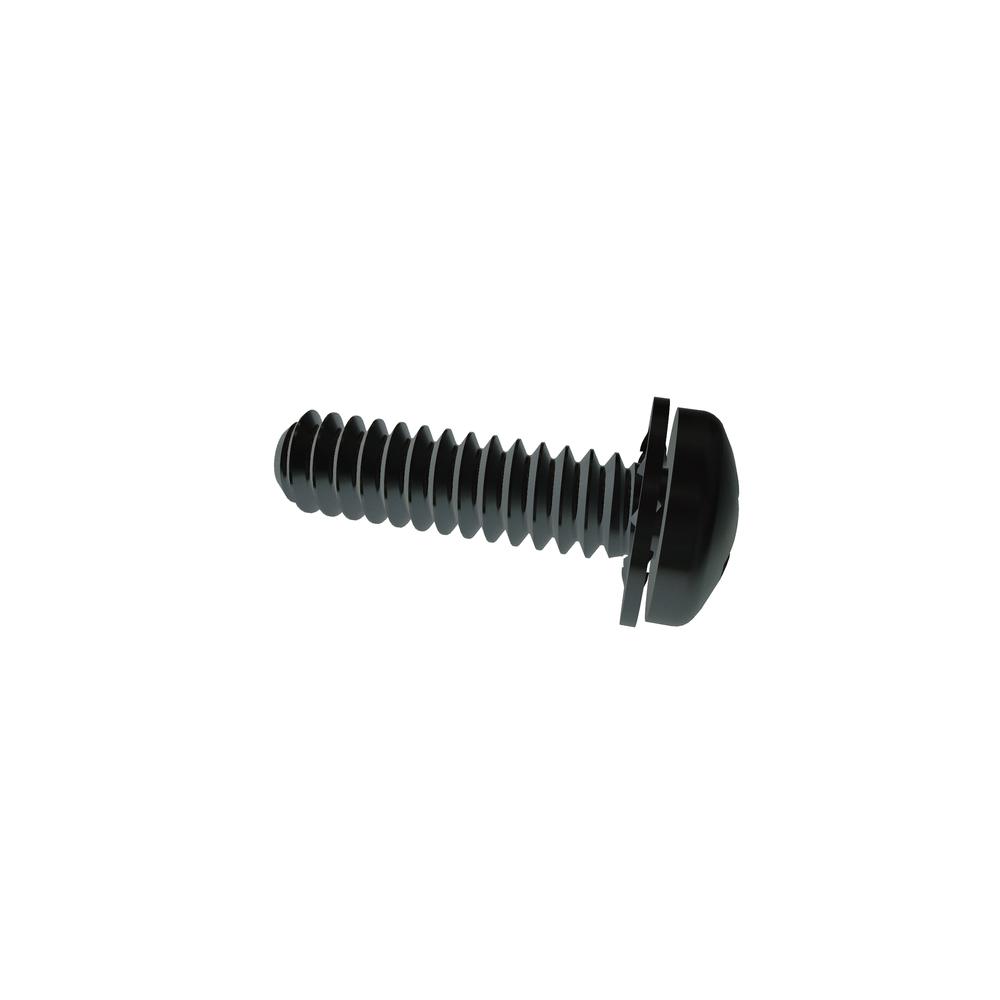

6C50PPIZR
6-32 X 1/2 PHIL PAN INT SEMS STL ZN CR3
Alternate Codes: 24203, 50531-04, 6C50PPIZt, 740-00072-21
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.175 | $0.105 | $0.088 | $0.072 | $0.063 | Larger Quantities |
In Stock
| Lock Washer Thickness (Max.) | 0.022in |
| Lock Washer Outside Diameter (Min.) | 0.278in |
| Lock Washer Outside Diameter (Max.) | 0.288in |
| Washer Type | Internal Tooth Lock Washer |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Recess Diameter | 0.159in |
| Head Radius (Min.) | 0.015in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90403A148 |
| Length | 1/2in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Lock Washer Thickness (Min.) | 0.016in |
