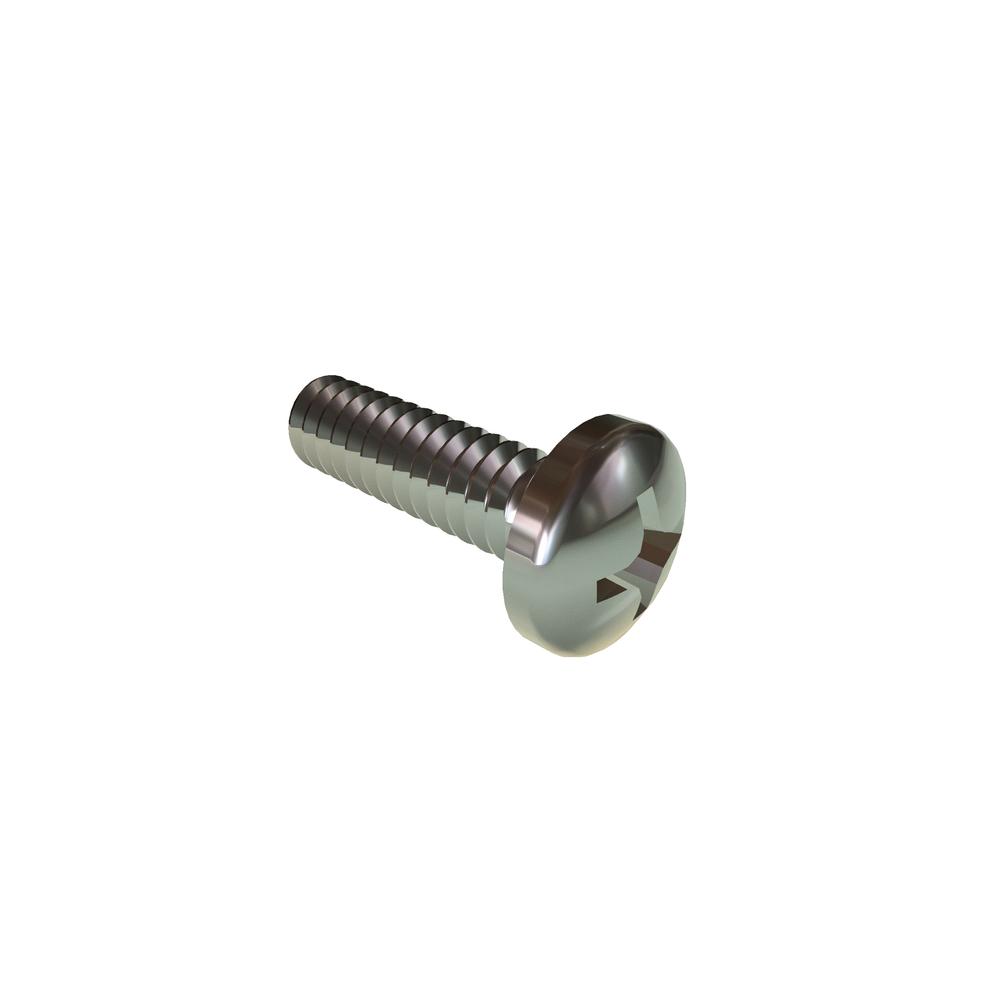

6-32 X 1/2 PH PAN SST RoHS
6C50PPMS
| Item Id | 6C50PPMS |
| Description | 6-32 X 1/2 PHIL PAN SST RoHS |
| Alternate Codes | 003716, 01452-1, 030494.001, 0960-0035, 100-00-126, 100-01-579, 1000-0102, 225-0019-17, 25-0010-08, 2600133-06, 276-0308, 2806-0112-08, 300-00771-108, 301-10103-08, 471-121, 477-0027, 490-0084, 515280, 610-10048, 701-0312-008, 901200-0008, FS-E-04-3B |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91772A148 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Head Radius (Min.) | 0.015in |
| Head Type | Pan |
| Length | 0.50in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.080in |
| Recess Depth (Min.) | 0.055in |
| Recess Diameter | 0.159in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
