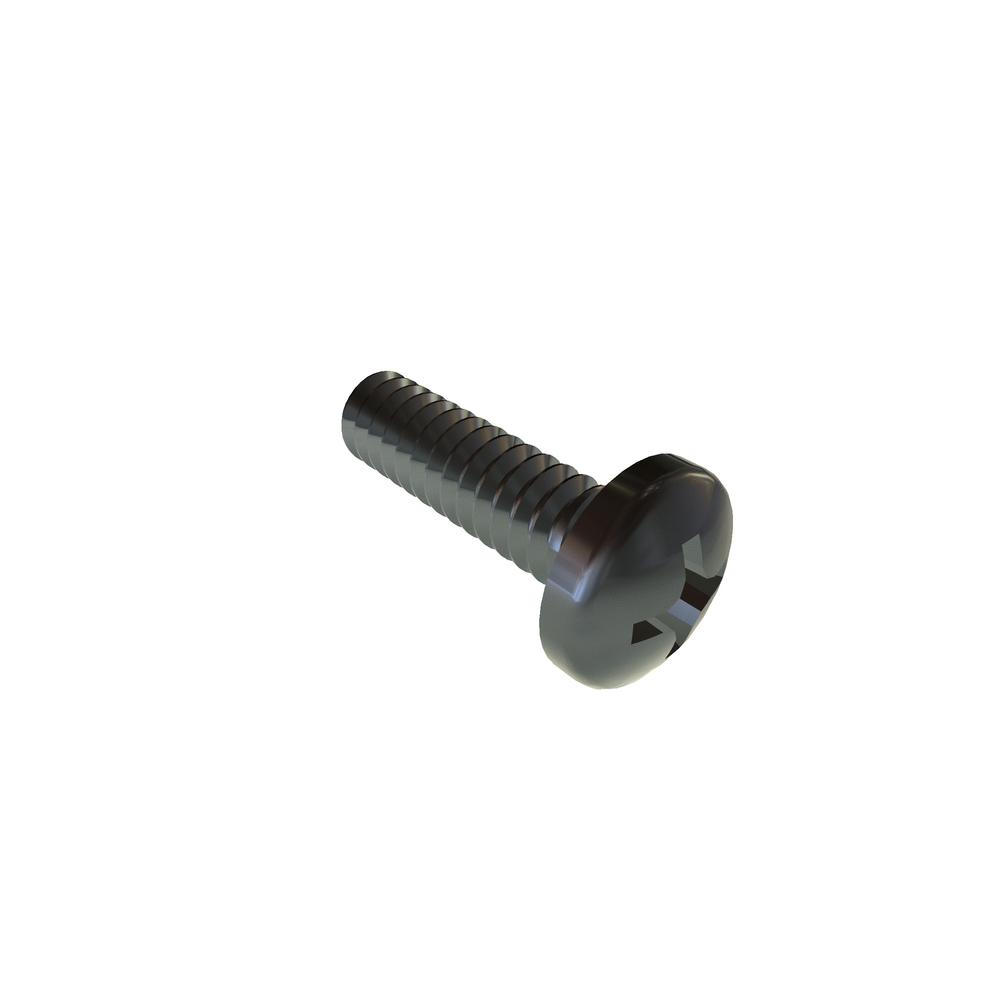

6C50PPMZN
6-32 X 1/2 PH PAN STL NI
Alternate Codes: 700043-00
RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs |
|---|---|---|
| $2.743 | $2.110 | $1.715 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 6-32 |
| Material | Steel |
| Finish | Nickel |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.159in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.080in |
| Brand | VARIED |
| Length | 0.50in |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
