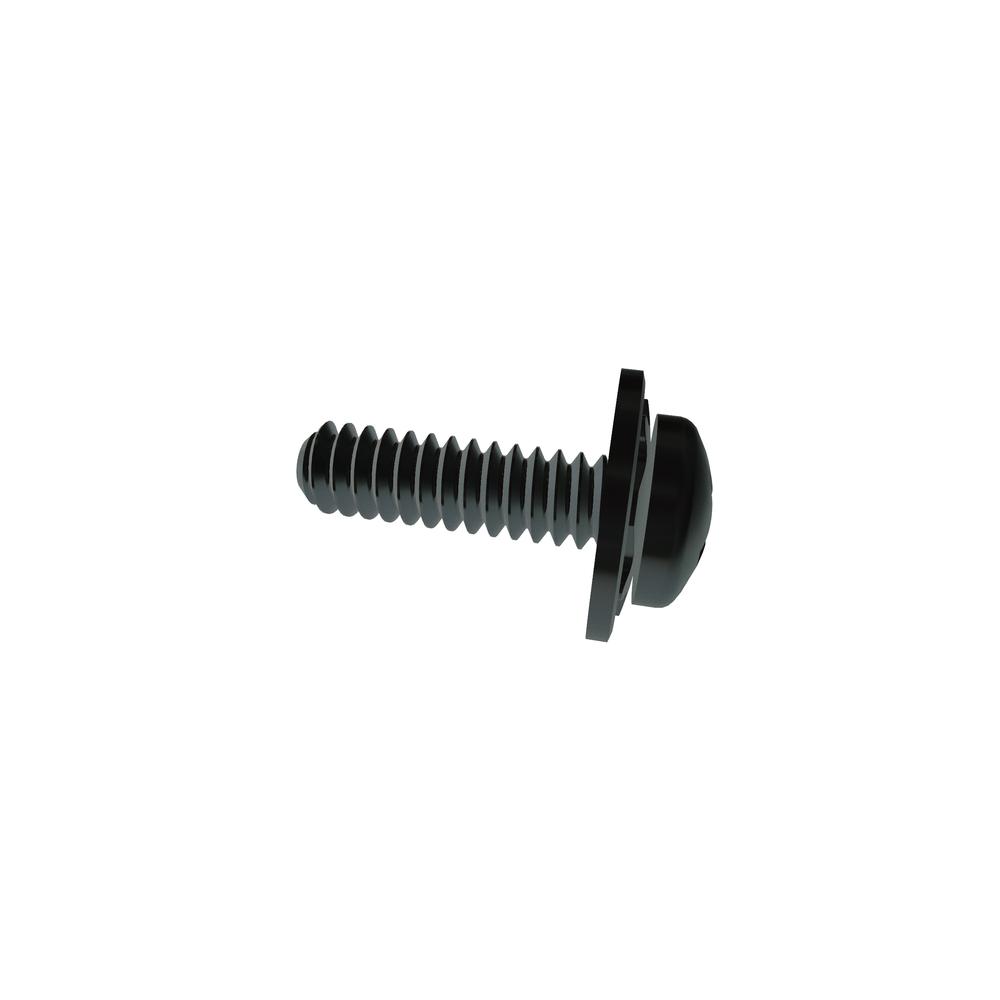

Image for reference purposes only. Actual product may vary.
6C50PPQZR
6-32 X 1/2 PH PAN SQ CONE SEMS STL ZN
Alternate Codes: 6C50PPQZt, 90400A148
CR3 RoHS
Pricing per Unit
| 1-249 pcs |
|---|
| $0.187 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 1/2in |
| Brand | VARIED |
| Recess Diameter | 0.159in |
| Washer Type | Square Cone Washer |
| Lock Washer Height (Min.) | 0.039in |
| Lock Washer Height (Max.) | 0.061in |
| Lock Washer Outside Diameter (Min.) | 0.307in |
| Lock Washer Outside Diameter (Max.) | 0.320in |
| Drive Size | 2 |
| Penetration Depth (Min.) | 0.055in |
| Penetration Depth (Max.) | 0.080in |
| Head Radius (Min.) | 0.015in |
| Additional Industry Cross Reference | 90400A148 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Lock Washer Thickness (Min.) | 0.025in |
