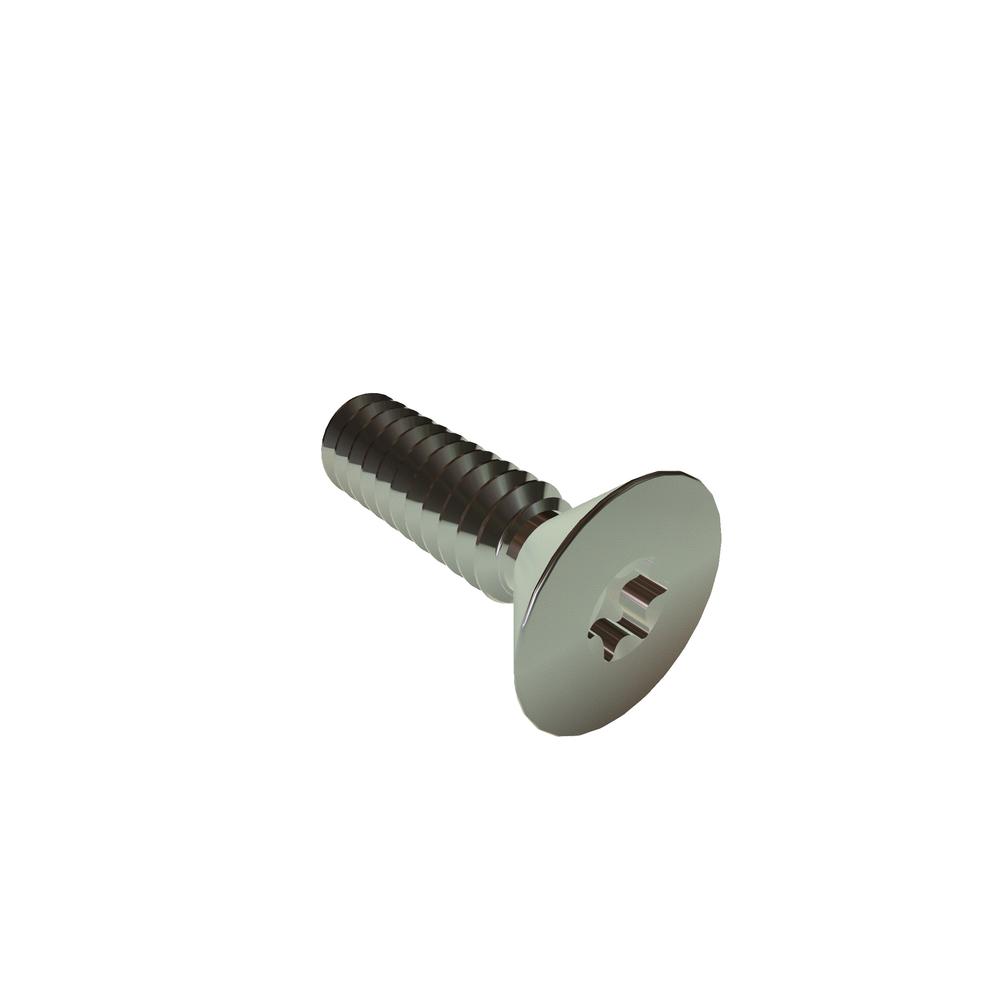

6-32 X 1/2 TORX FLAT SST RoHS
6C50XFMS
| Item Id | 6C50XFMS |
| Description | 6-32 X 1/2 TORX FLAT MS SST RoHS |
| Alternate Codes | 94356A117 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 94356A117 |
| Brand | VARIED |
| Drive Size | T10 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 0.279in |
| Head Diameter (Min.) | 0.244in |
| Head Height | 0.083in |
| Head Type | Flat |
| Length | 0.50in |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.045in |
| Recess Depth (Min.) | 0.035in |
| Recess Diameter | 0.111in |
| RoHS | Compliant |
| Thread Size | 6-32 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
