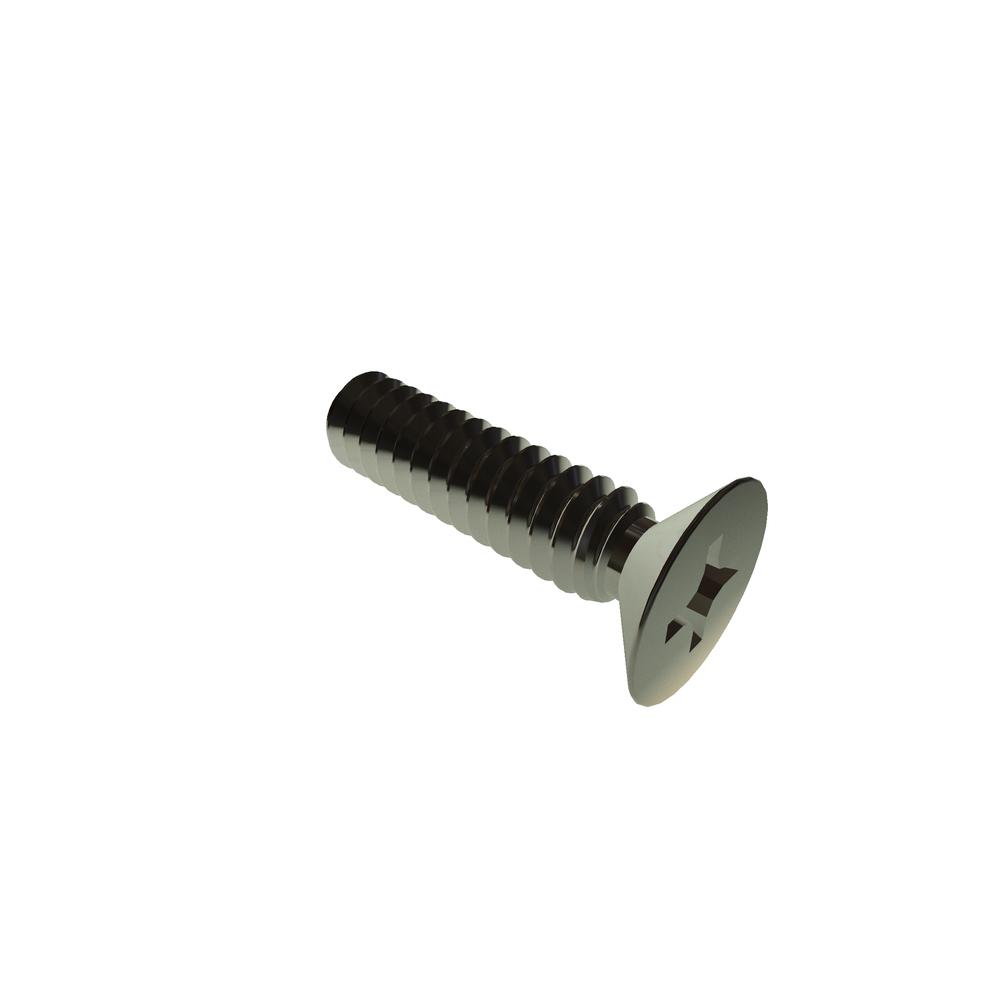

6C56PFHS/L
6-32 X 9/16 PHIL FLAT 100 DEG STRIP-LOK
Alternate Codes: N/A
SST RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $1.238 | $0.788 | $0.723 | $0.667 | $0.563 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Flat 100 Degree |
| Locking Element | Strip-Lok |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.148in |
| Head Height | 0.060in |
| Recess Depth (Min.) | 0.052in |
| Recess Depth (Max.) | 0.075in |
| Brand | VARIED |
| Length | 9/16in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.235in |
