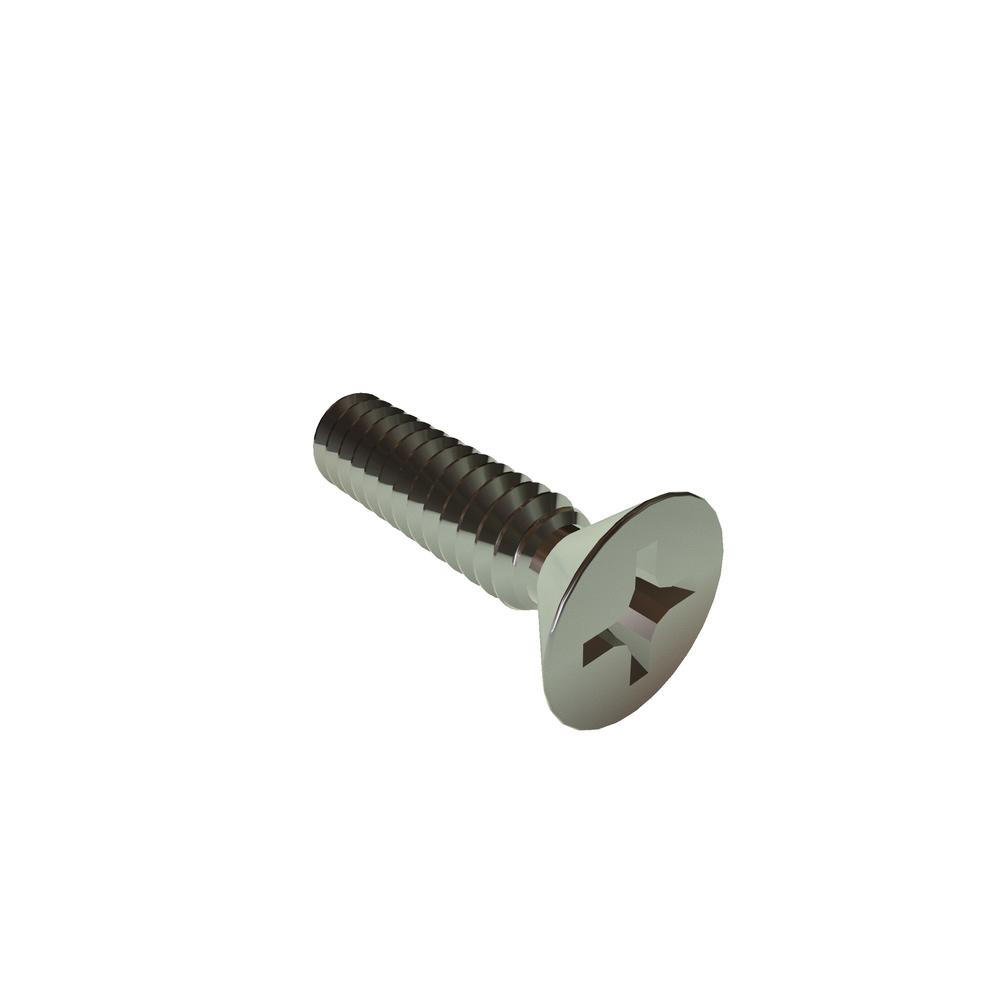

Image for reference purposes only. Actual product may vary.
6C56PFMS
6-32 X 9/16 PHIL FLAT SST RoHS
Alternate Codes: N/A
6-32 X 9/16 Phillips Flat Head Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 6-32 |
| Length | 0.56in |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Finish | Plain |
| Brand | VARIED |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Flat |
| Drive Size | 2 |
| Recess Diameter | 0.168in |
| Head Height | 0.083in |
| Recess Depth (Min.) | 0.072in |
| Recess Depth (Max.) | 0.095in |
| Additional Industry Cross Reference | 91771A169 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.262in |
| Head Diameter (Min.) | 0.238in |
