6C75PTMZB

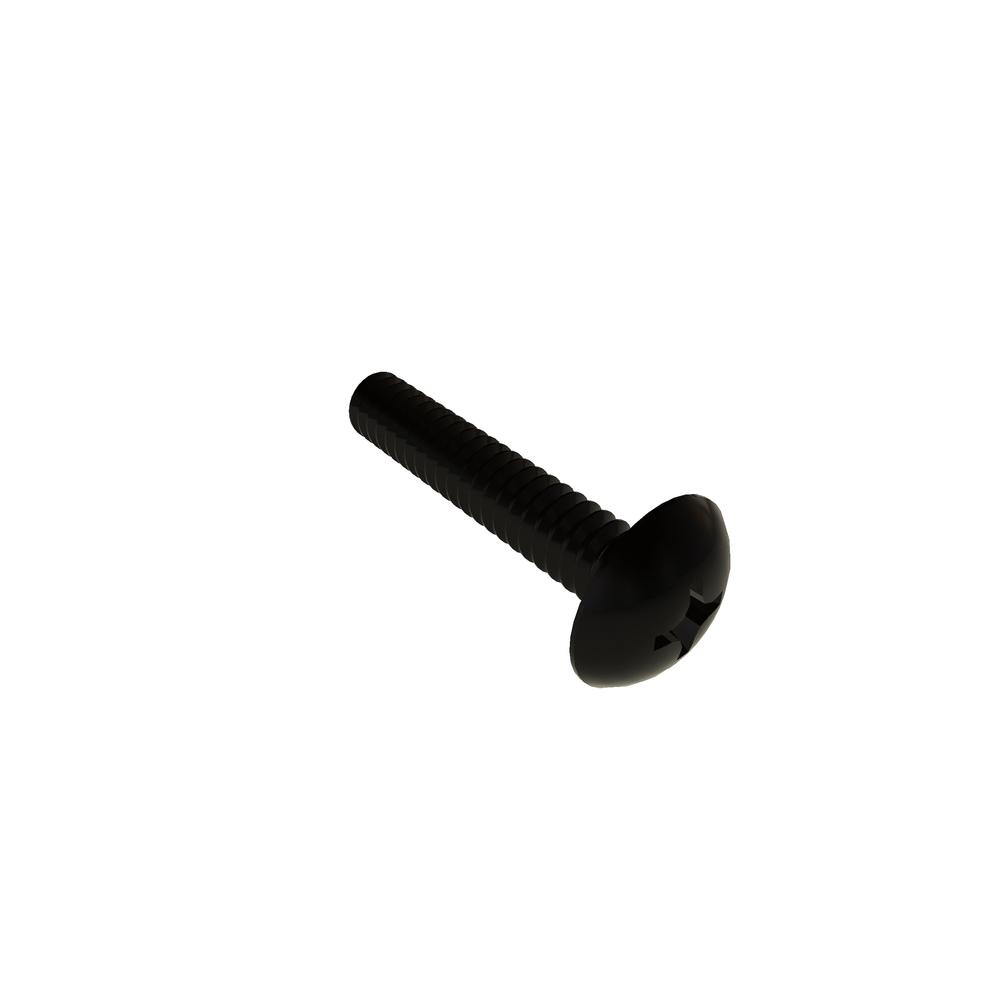

6-32 X 3/4 PHIL TRUSS STL BLK RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|
| $0.163 | $0.098 | $0.082 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 6-32 |
| Material | Steel |
| Finish | Black Oxide |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Type | Truss |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.151in |
| Head Radius (Min.) | 0.211in |
| Recess Depth (Min.) | 0.048in |
| Recess Depth (Max.) | 0.073in |
| Brand | VARIED |
| Length | 0.75in |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.321in |
| Head Diameter (Min.) | 0.303in |
| Head Height (Max.) | 0.086in |
| Head Height (Min.) | 0.074in |
