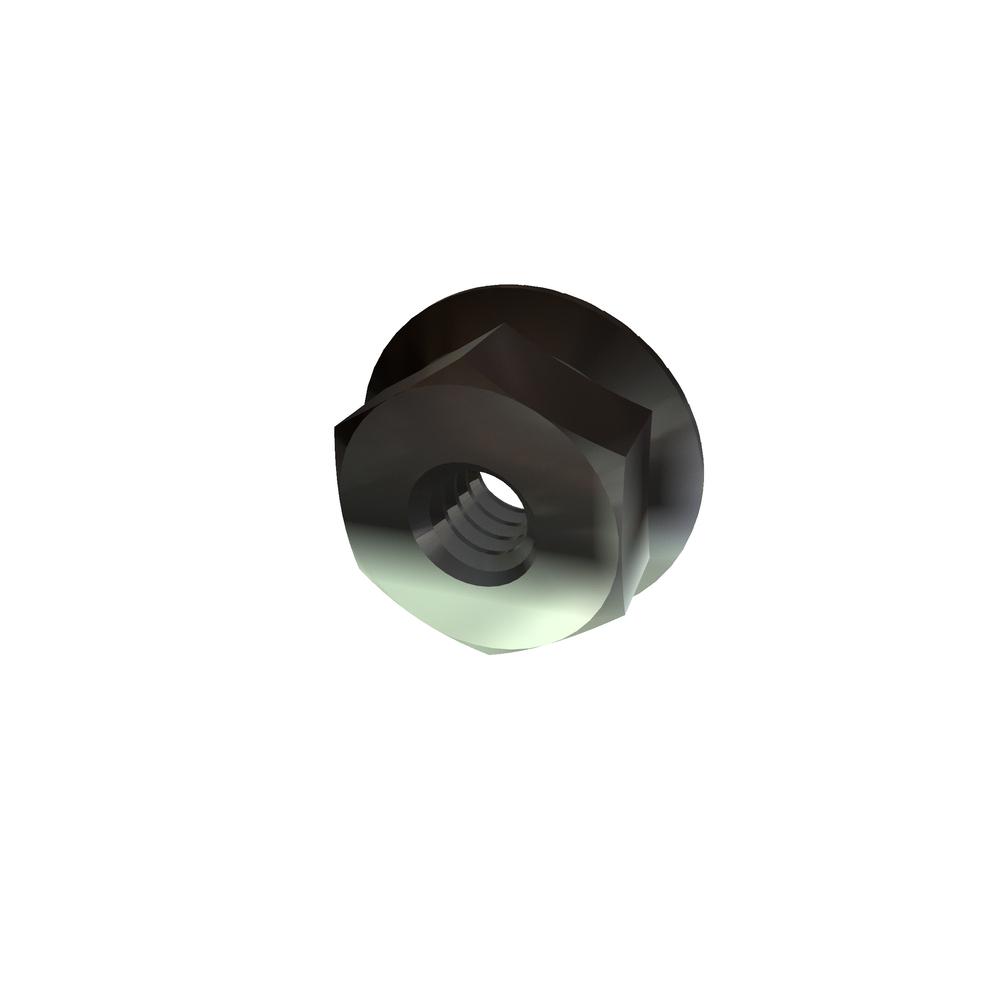

6CFLNS/W
6-32 FLANGE NUT WHIZLOK SST RoHS
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.364 | $0.192 | $0.152 | $0.140 | $0.117 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Flange Diameter (Min.) | 0.408in |
| Flange Diameter (Max.) | 0.422in |
| Flange Thickness (Min.) | 0.020in |
| Wrenching Height (Min.) | 0.100in |
| Brand | VARIED |
| Type | Flange Nut Whizlok |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.16.4 |
| Head Thickness (Max.) | 0.171in |
| Head Thickness (Min.) | 0.156in |
| Width Across Flat (Max.) | 0.312in |
| Width Across Flat (Min.) | 0.302in |
