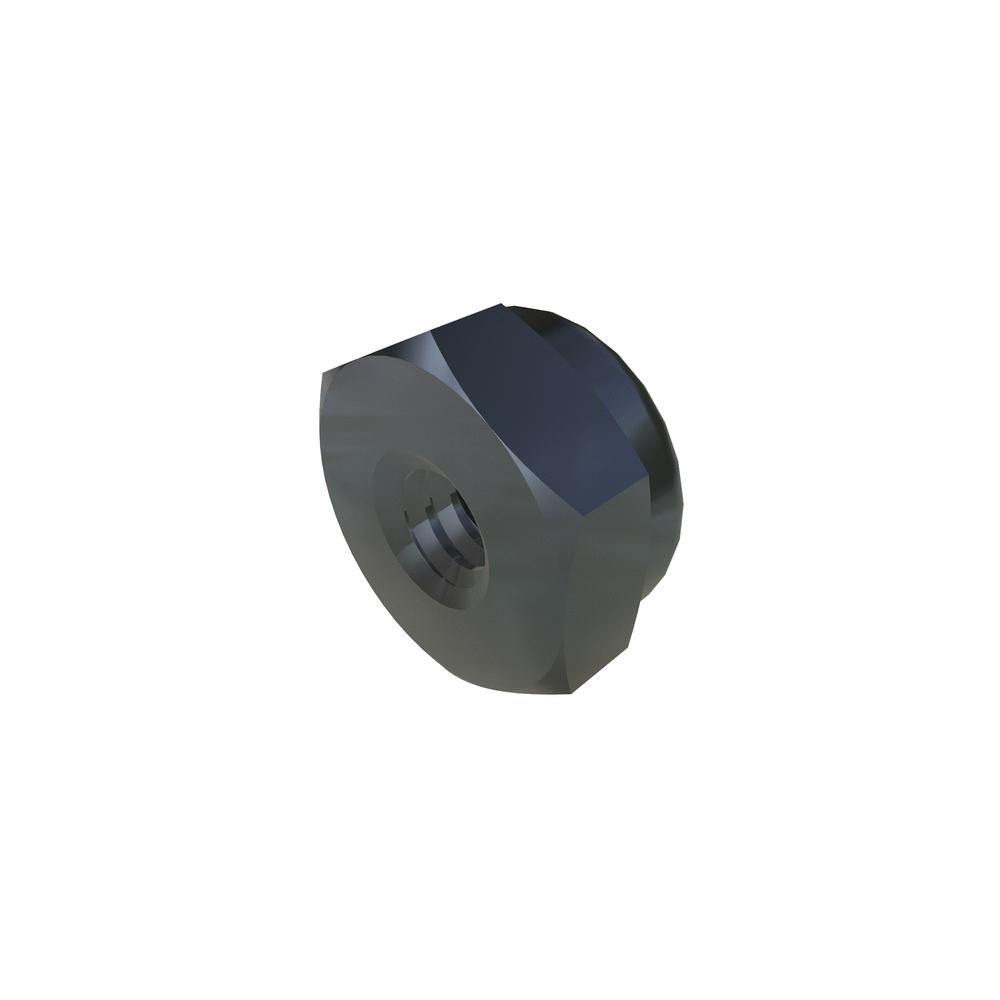

6CLNTZR
6-32 NYLON INSERT LOCKNUT STL ZN CR3
Alternate Codes: 1432-0002, 1901-0065, 240-5005-00, 2803-0450, 35-859, 383-05048, 516933, 66-0006-00, 6CLNTZt, 73-H302-00, 778-00024, 93006-206
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | 5000-9999 pcs | Call For |
|---|---|---|---|---|---|
| $0.108 | $0.066 | $0.048 | $0.037 | $0.035 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| Head Side Height | 0.103in |
| Brand | VARIED |
| Type | Nylon Insert Locknut |
| Additional Industry Cross Reference | 90631A007 |
| RoHS | Compliant |
| Head Thickness (Max.) | 0.188in |
| Head Thickness (Min.) | 0.168in |
| Width Across Flat (Max.) | 0.313in |
| Width Across Flat (Min.) | 0.305in |
