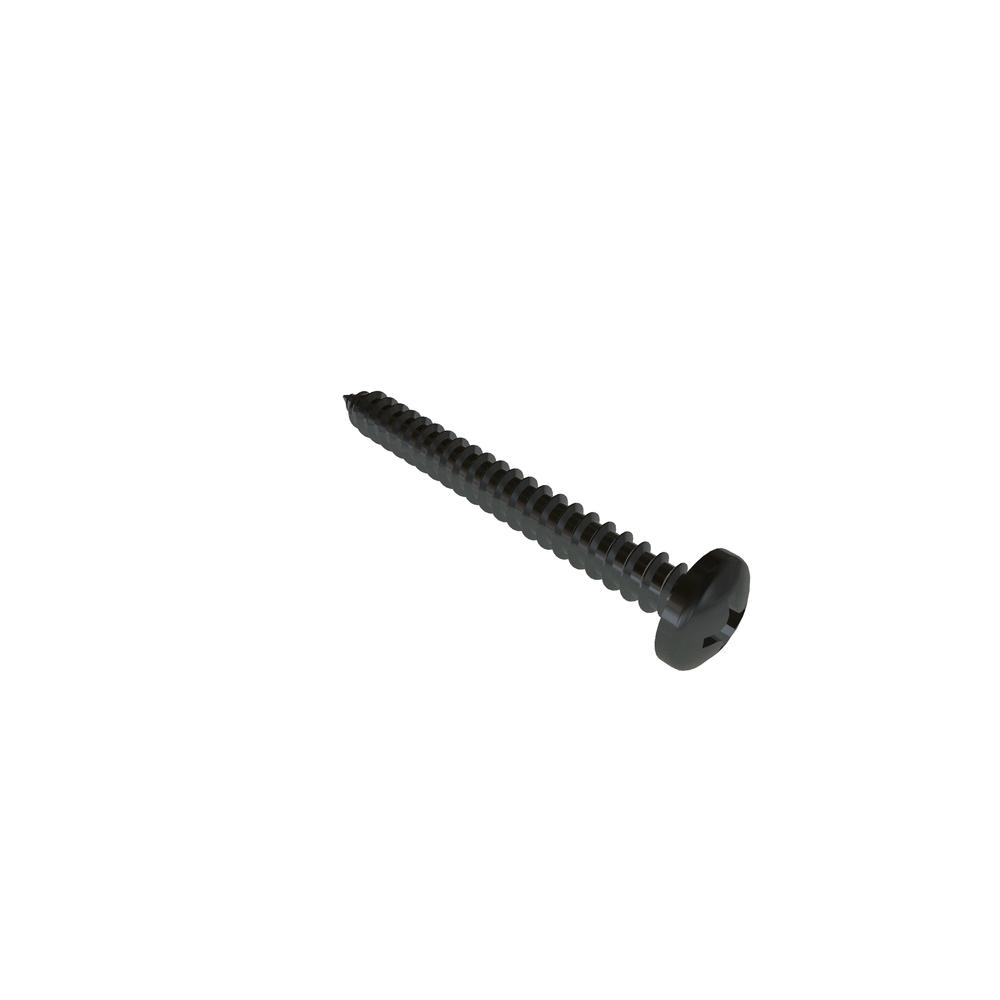

6N125PPAZR
6 X 1 1/4 PHIL PAN T-AB STL ZN CR3
Alternate Codes: 90190A155
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.329 | $0.173 | $0.137 | $0.126 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 6-20 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Nominal Diameter | 0.138in |
| Head Type | Pan Head |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 0.159in |
| Head Radius (Min.) | 0.015in |
| Recess Depth (Min.) | 0.055in |
| Recess Depth (Max.) | 0.080in |
| Brand | VARIED |
| Additional Industry Cross Reference | 90190A155 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
