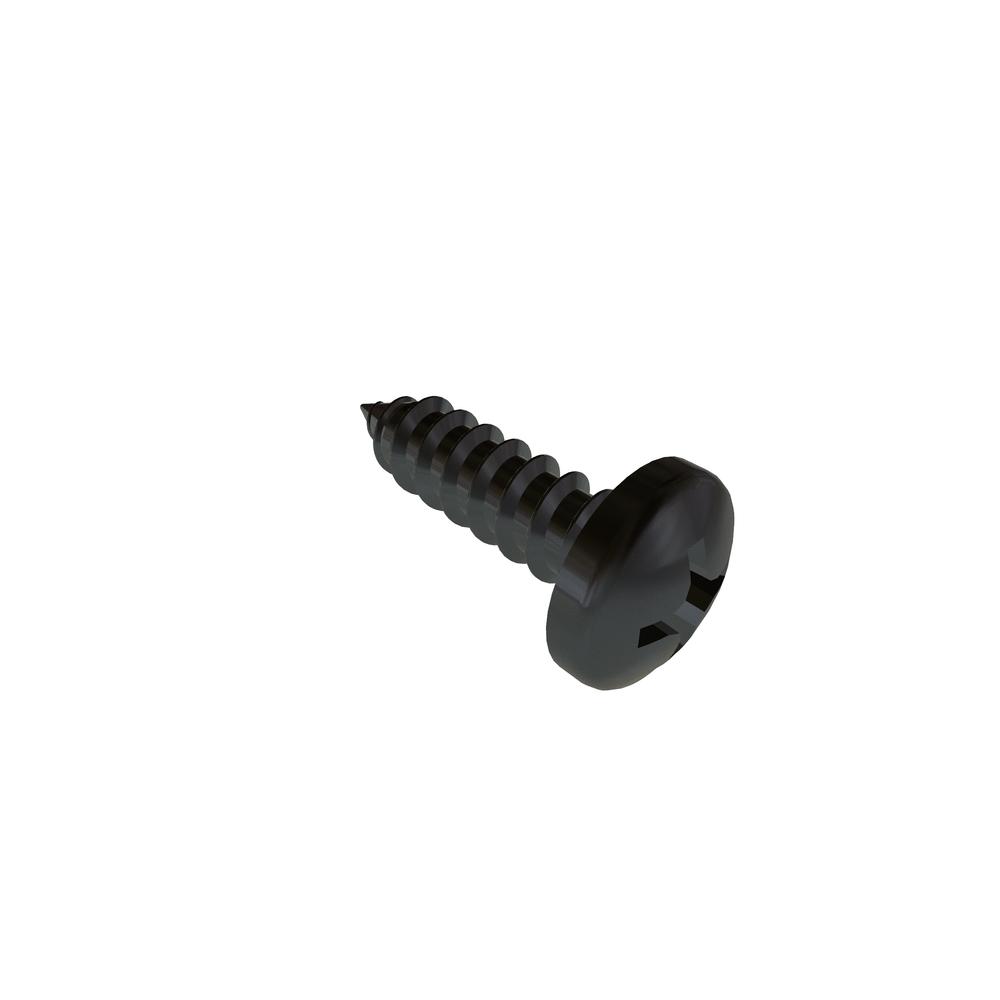

6 X 1/2 PHIL PAN T-AB STL ZN CR3
6N50PPAZR
| Item Id | 6N50PPAZR |
| Description | 6-20 X 1/2 PHIL PAN TYPE-AB STL ZN CR3 |
| Alternate Codes | 1901-0086, 232-0003-00, 90190A148, 93006-036 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 90190A148 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 0.270in |
| Head Diameter (Min.) | 0.256in |
| Head Height (Max.) | 0.097in |
| Head Height (Min.) | 0.087in |
| Head Radius (Min.) | 0.015in |
| Head Type | Pan Head |
| Material | Steel |
| Meets (Standard) | ASME B18.6.3 |
| Nominal Diameter | 0.138in |
| Recess Depth (Max.) | 0.080in |
| Recess Depth (Min.) | 0.055in |
| Recess Diameter | 0.159in |
| RoHS | Compliant |
| Thread Size | 6-20 |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
