6R50DOWS

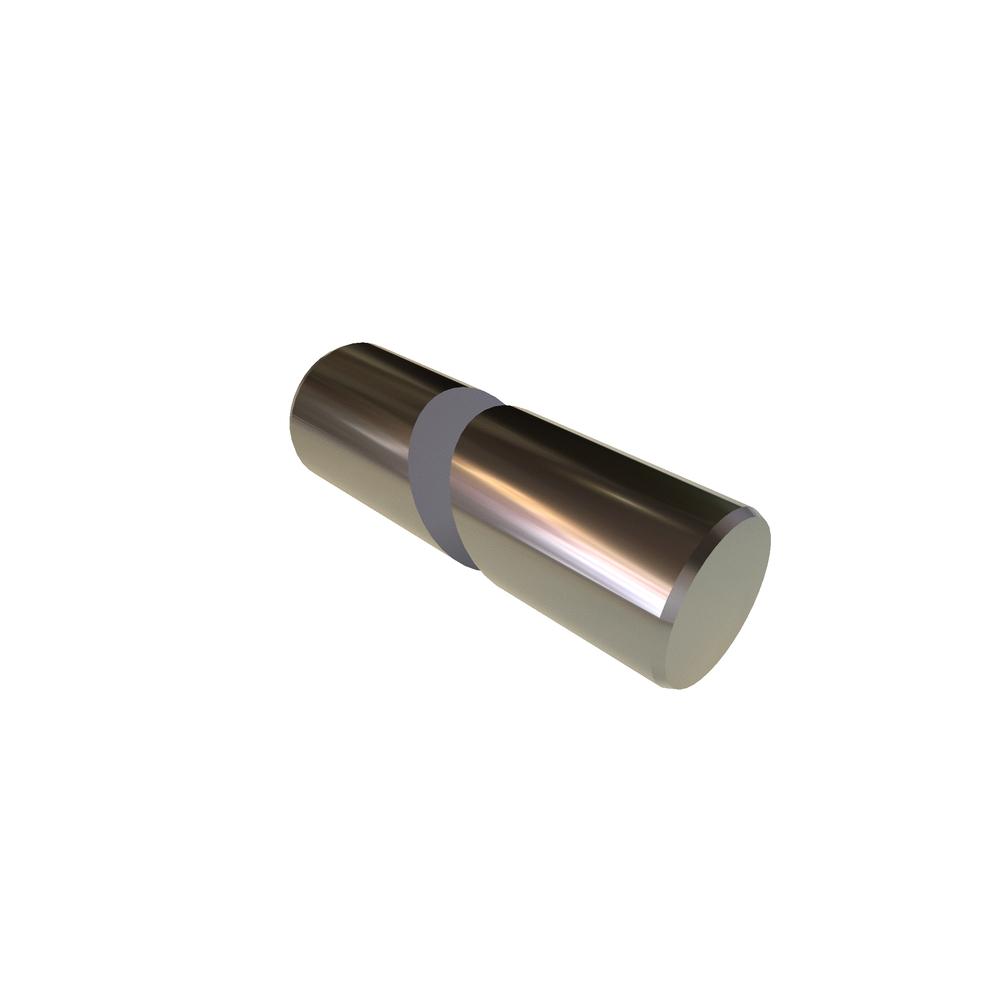

1/16 X 1/2 DOWEL PIN SST RoHS
Alternate Codes: 001032, 1459022573, 98105A052, D41-500, RM60004201
1/16 X 1/2 DOWEL PIN Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.653 | $0.416 | $0.382 | $0.352 | $0.297 | Larger Quantities |
In Stock
| Material | 300 Stainless Steel |
| Units | Inch |
| Nominal Diameter | 0.0625in |
| Pin Diameter (Min.) | 0.0626in |
| Pin Diameter (Max.) | 0.0628in |
| Chamfer Length (Min.) | 0.005in |
| Chamfer Length (Max.) | 0.025in |
| Brand | VARIED |
| Type | Press Fit |
| Additional Industry Cross Reference | 98105A052 90145A419 |
| Length | 0.5000in |
| RoHS | Compliant |
| Heat Treat | Unhardened |
