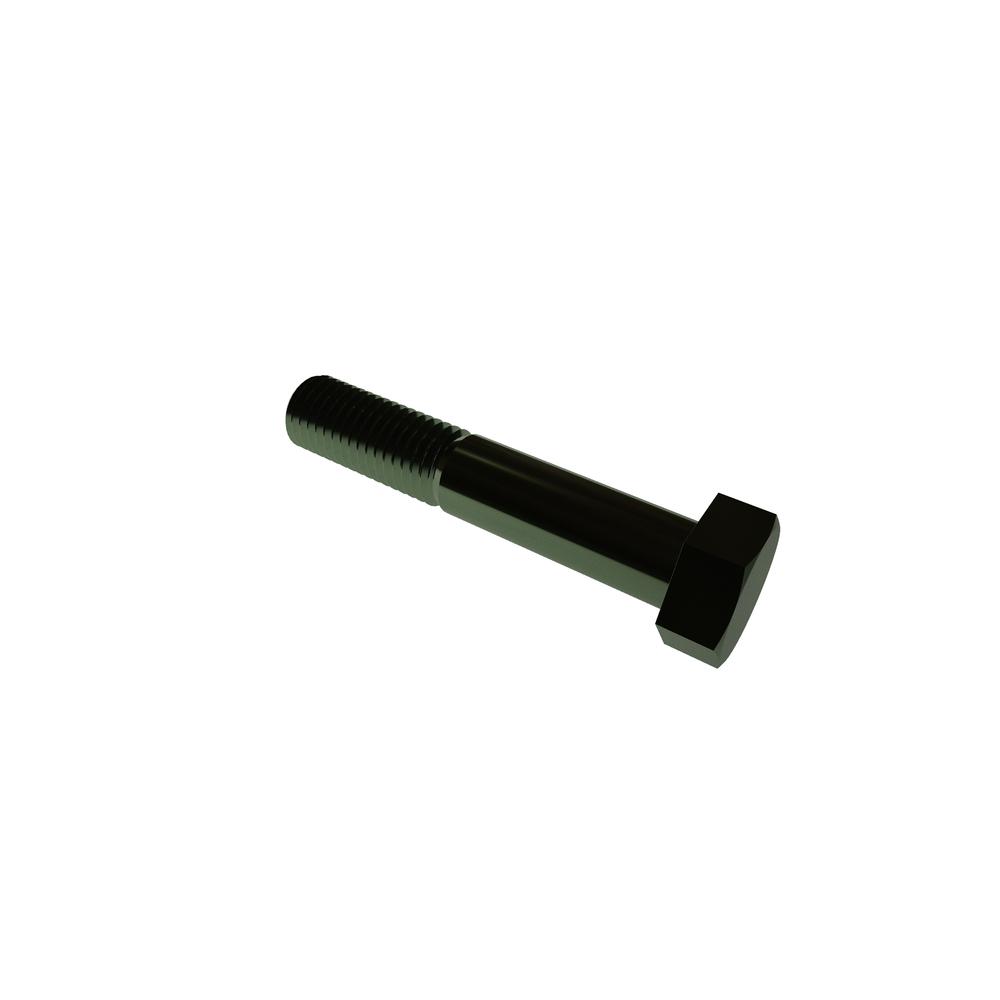

3/4-10 X 4 HX HD GR 5 ZN CR3
75C400HHD5R
| Item Id | 75C400HHD5R |
| Description | 3/4-10 X 4 HX HD GR5 ZN RoHS |
| Extended Description | 3/4-10 X 4 Hex Head Grade 5 steel Zinc plate RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 92865A851 |
| Body Diameter (Max.) | 0.768in |
| Body Diameter (Min.) | 0.729in |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | 5 |
| Head Height (Max.) | 0.524in |
| Head Height (Min.) | 0.455in |
| Head Type | Hex |
| Length | 4.00in |
| Material | Steel |
| Meets (Standard) | ASME B18.2.1 |
| Nominal Thread Size | 0.750in |
| RoHS | Compliant |
| Thread Size | 3/4-10 |
| Thread Type | Unified Coarse Thread (UNC) |
| Units | Inch |
| Width Across Flat (Max.) | 1.125in |
| Width Across Flat (Min.) | 1.088in |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
