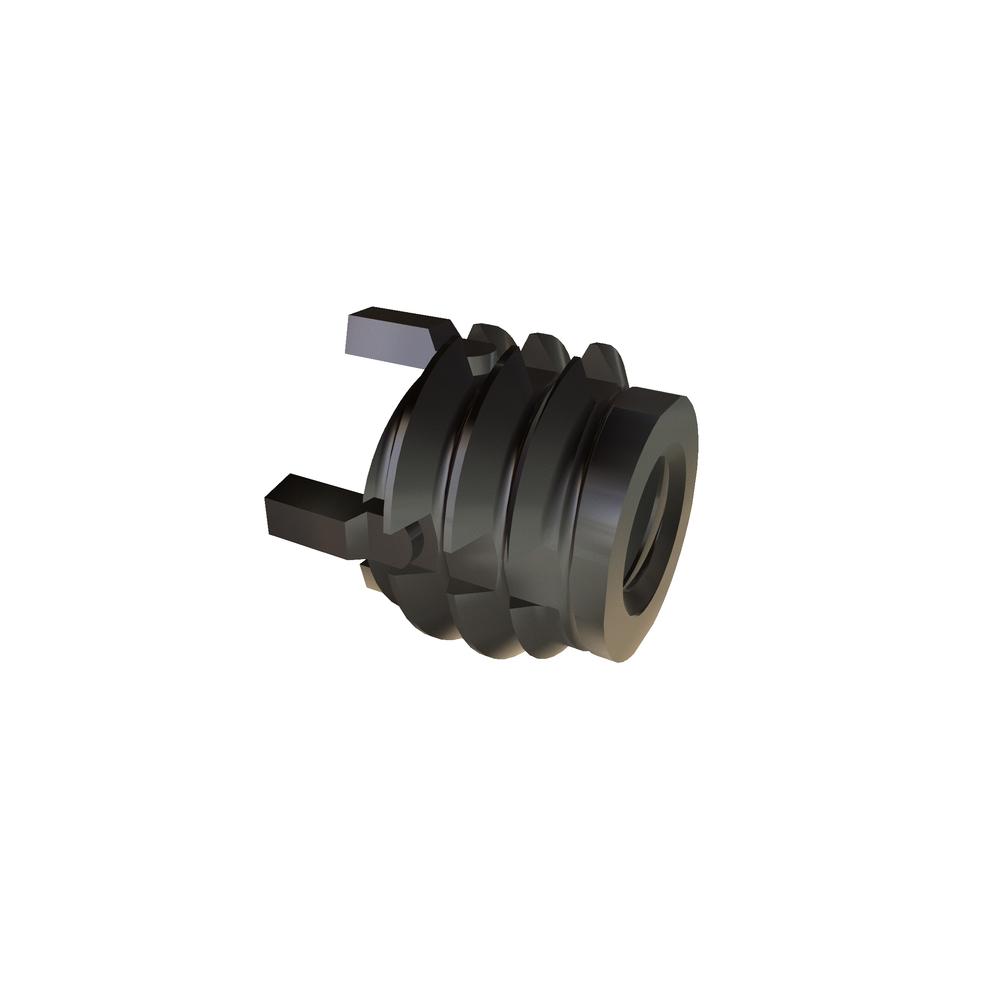

Image for reference purposes only. Actual product may vary.
76283
2-56 X .12 KEYLOCK INS 8-32 303SST
Alternate Codes: 217-076283, KNCA0256J HOWMET
MS51830-101
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $7.629 | $6.282 | $5.621 | $4.747 | $4.545 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 2-56 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Miniature |
| Material | 303 Stainless Steel |
| External Thread | 8-32 |
| Units | Inch |
| Nominal Diameter | 0.086in |
| Insert Type | Non Locking |
| Drill Size | .134in |
| Thread Length | 0.090in |
| Removal Drill Depth | 0.063in |
| Removal Drill Size | #33 |
| Minimum Installation Depth | 0.140in |
| Thread Tap Size | 8-32 |
| External Thread Nominal Diameter | 0.164in |
| Internal Thread Nominal Diameter | 0.086in |
| Counter Sink Diameter | 0.166in |
