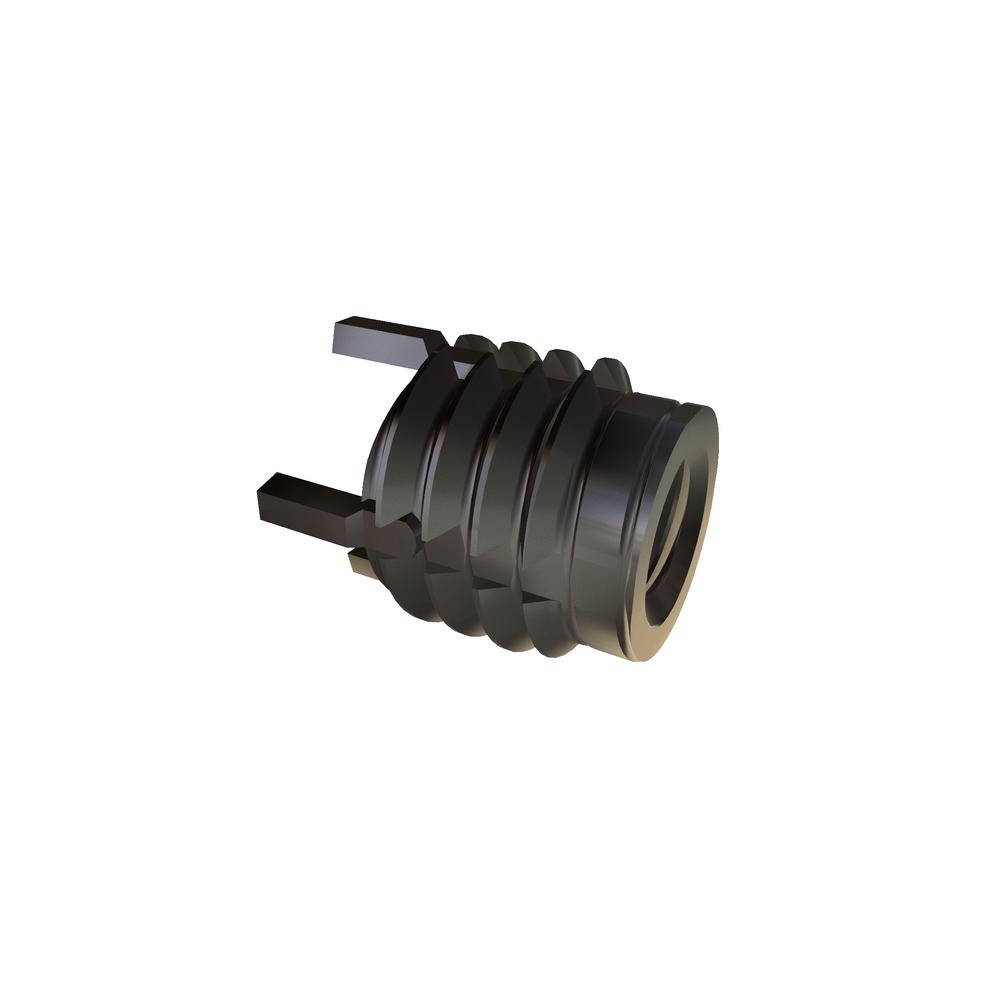

Image for reference purposes only. Actual product may vary.
76284
4-40 X .17 KEYLOCK INS 10-32 303SST
Alternate Codes: 217-076284, FSTINSKNCA0440JKEE, K9905-04, KNCA0440J HOWMET
MS51830-102
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $5.571 | $4.588 | $4.105 | $3.467 | $3.319 | Larger Quantities |
Out of stock
| Thread Size | 4-40 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Material | 303 Stainless Steel |
| External Thread | 10-32 |
| Units | Inch |
| Nominal Diameter | 0.112in |
| Thread Length | 0.125in |
| Removal Drill Depth | 0.094in |
| Removal Drill Size | #29 |
| Minimum Installation Depth | 0.160in |
| Thread Tap Size | 10-32 |
| External Thread Nominal Diameter | 0.190in |
| Internal Thread Nominal Diameter | 0.112in |
| Counter Sink Diameter | 0.194in |
