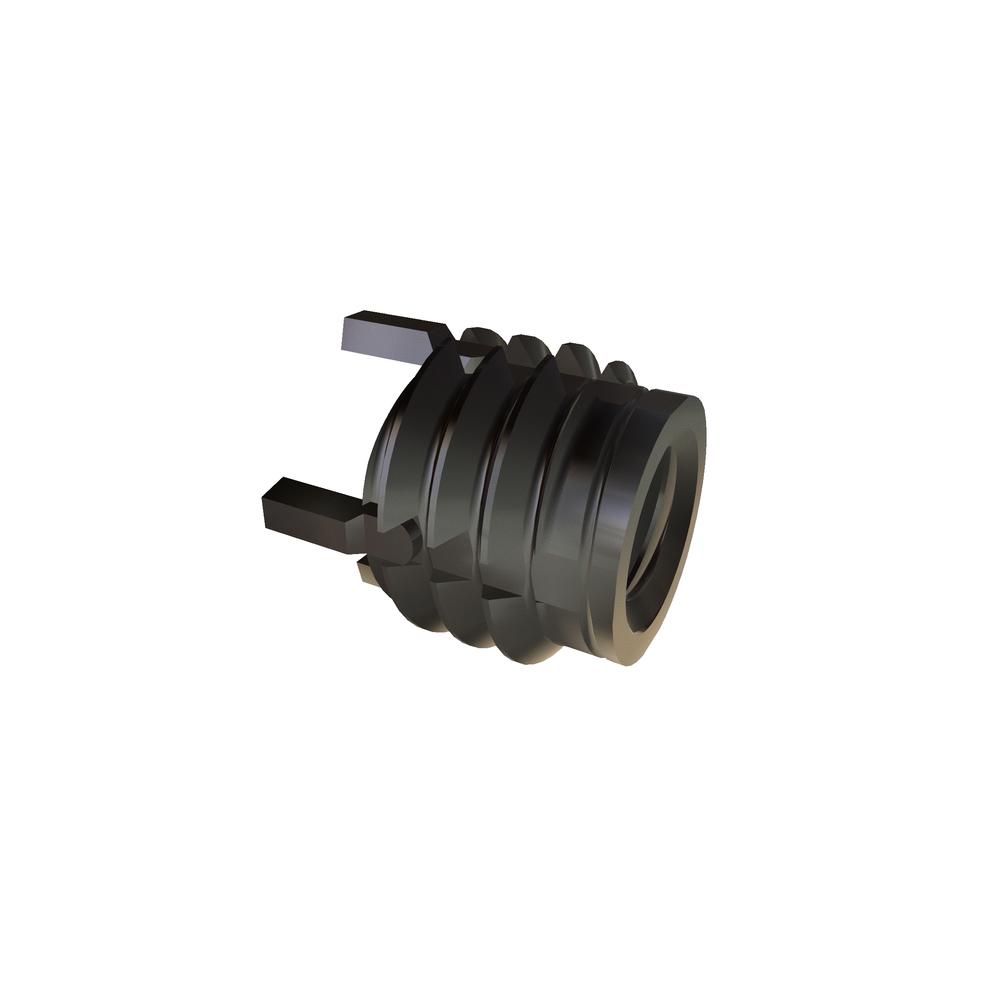

Image for reference purposes only. Actual product may vary.
76285
6-32 X .17 KEYLOCK INS 12-28 303SST
Alternate Codes: 217-076285, KNC0632J HOWMET
MS51830-103
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $4.643 | $3.824 | $3.421 | $2.889 | $2.766 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 6-32 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Miniature |
| Material | 303 Stainless Steel |
| External Thread | 12-28 |
| Units | Inch |
| Nominal Diameter | 0.138in |
| Insert Type | Non Locking |
| Drill Size | .187in |
| Thread Length | 0.125in |
| Removal Drill Depth | 0.094in |
| Removal Drill Size | #21 |
| Minimum Installation Depth | 0.160in |
| Thread Tap Size | 12-28 |
| External Thread Nominal Diameter | 0.216in |
| Internal Thread Nominal Diameter | 0.138in |
| Counter Sink Diameter | 0.220in |
