76300

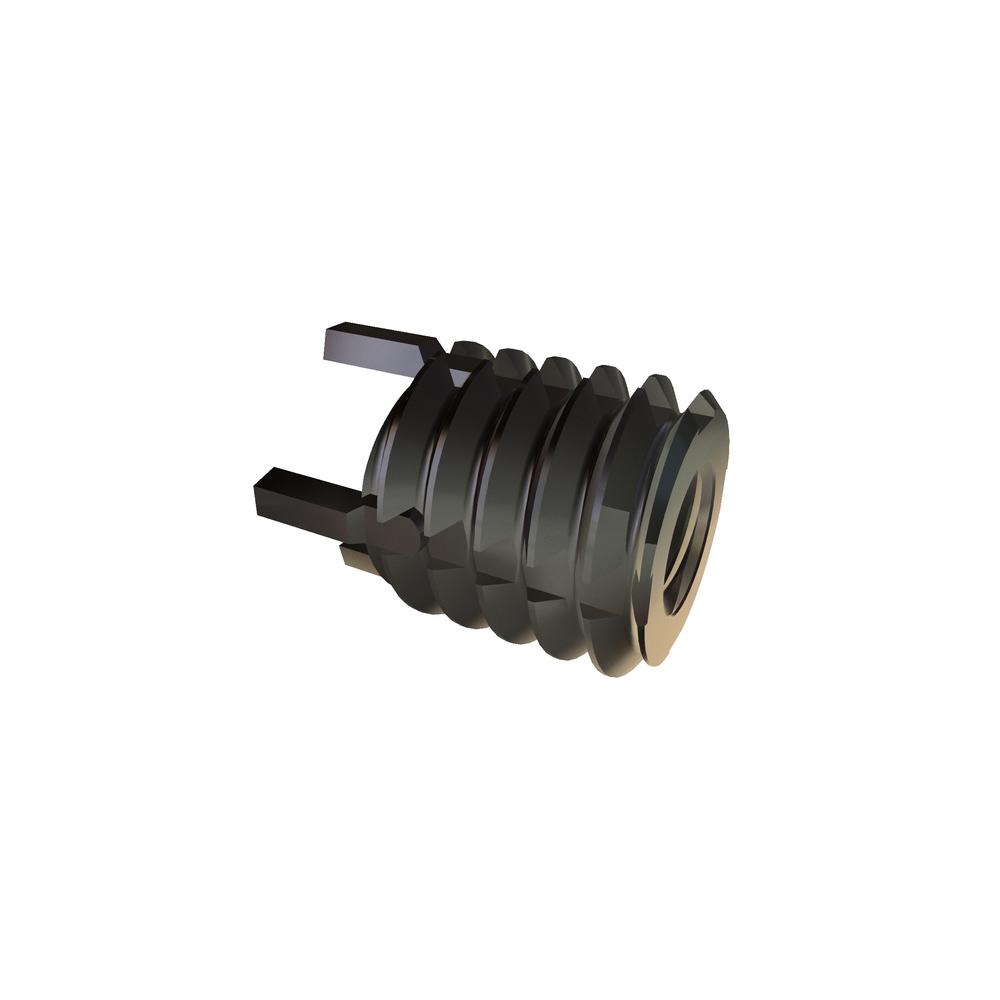

8-32 X .31 KEYLOCK INS 5/16-18 303SST
Alternate Codes: 91731A047, 92100A709, KNH0832J HOWMET
NAS1395C08
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $4.286 | $3.529 | $3.158 | $2.667 | $2.553 | Larger Quantities |
In Stock
| Thread Size | 8-32 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.164in |
| Insert Type | Non Locking |
| Grade | Heavy Duty |
| Drill Size | 0.272in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.125in |
| Removal Drill Size | 7/32in |
| Minimum Installation Depth | 0.370in |
| Thread Tap Size | 5/16-18 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.313in |
| Internal Thread Nominal Diameter | 0.164in |
| Bore Depth | 0.040in |
| Counter Sink Diameter | 0.323in |
| External Thread | 5/16-18 |
