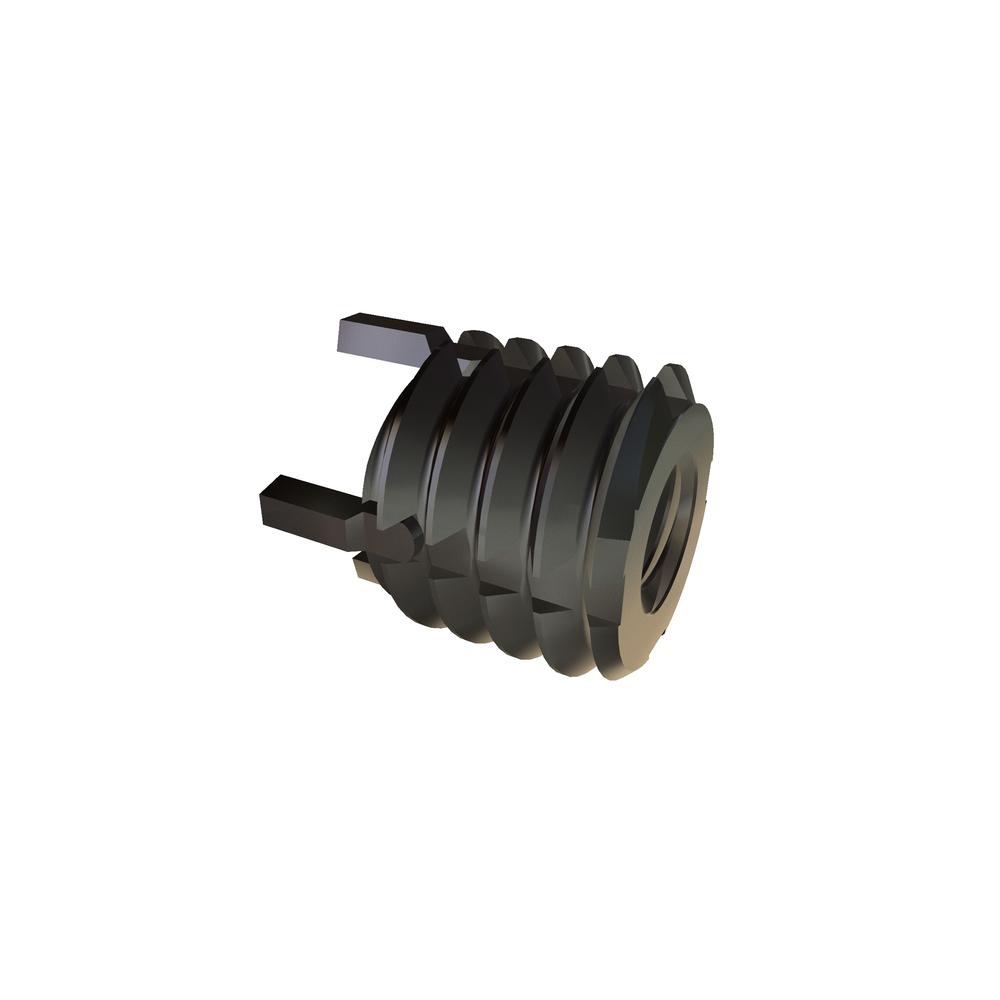

Image for reference purposes only. Actual product may vary.
76301
10-24 X .31 KEYLOCK INS 3/8-16 303SST
Alternate Codes: 217-076301, 91731A051, 92100A709, KNH1024J HOWMET, MS51831-101
MS51831-101
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $4.107 | $3.382 | $3.026 | $2.556 | $2.447 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 10-24 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Heavy Duty |
| Material | 303 Stainless Steel |
| External Thread | 3/8-16 |
| Units | Inch |
| Nominal Diameter | 0.190in |
| Insert Type | Non Locking |
| Drill Size | 0.332in |
| Removal Drill Depth | 0.125in |
| Removal Drill Size | 9/32in |
| Minimum Installation Depth | 0.370in |
| Thread Tap Size | 3/8-16 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.375in |
| Internal Thread Nominal Diameter | 0.190in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.385in |
