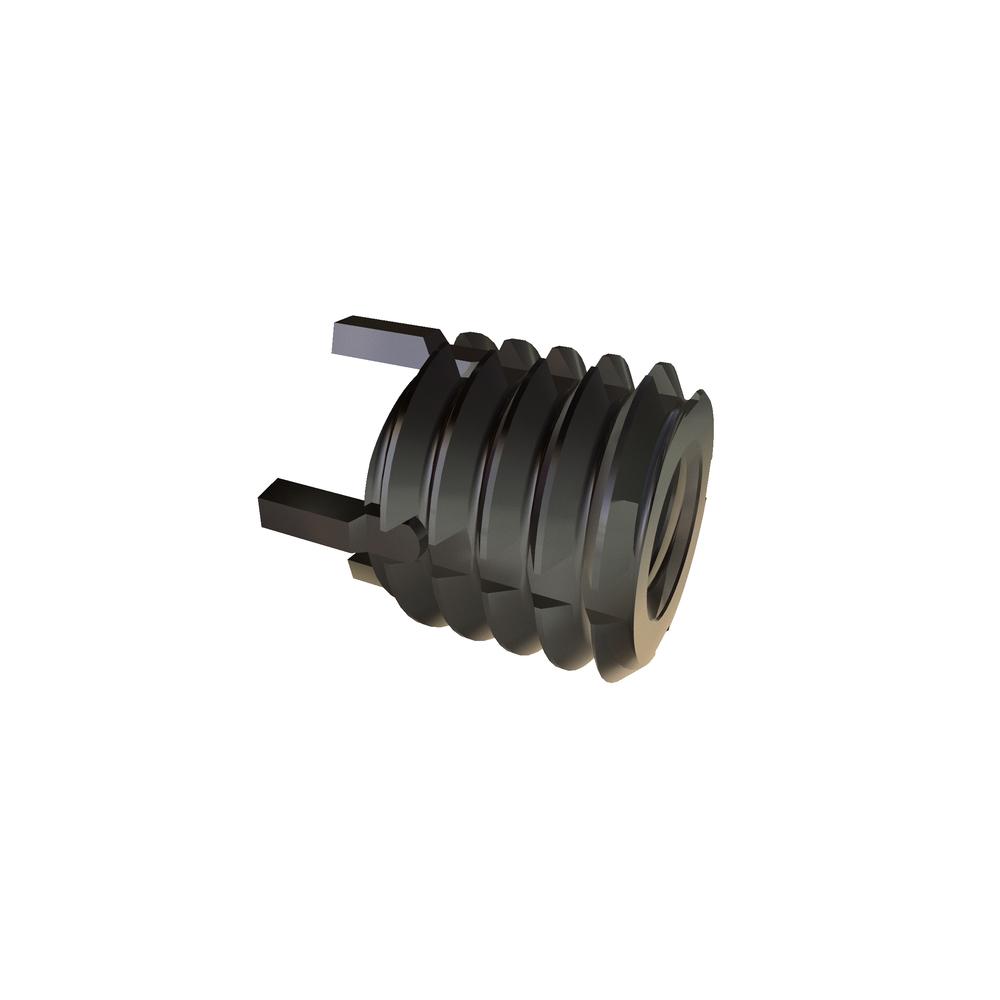

76302
1/4-20 X .37 KEYLOCK INS 7/16-14 303SST
Alternate Codes: 217-076302, 91731A052, KNH420J HOWMET, MS51831-102 ACME, MS51831-102 MILSPEC
MS51831-102
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $4.071 | $3.353 | $3.000 | $2.533 | $2.426 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.250in |
| Insert Type | Non Locking |
| Grade | Heavy Duty |
| Drill Size | 0.397in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 11/32in |
| Minimum Installation Depth | 0.430in |
| Thread Tap Size | 7/16-14 |
| Self Locking Distance | 0.220in |
| External Thread Nominal Diameter | 0.438in |
| Internal Thread Nominal Diameter | 0.250in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.447in |
| External Thread | 7/16-14 |
