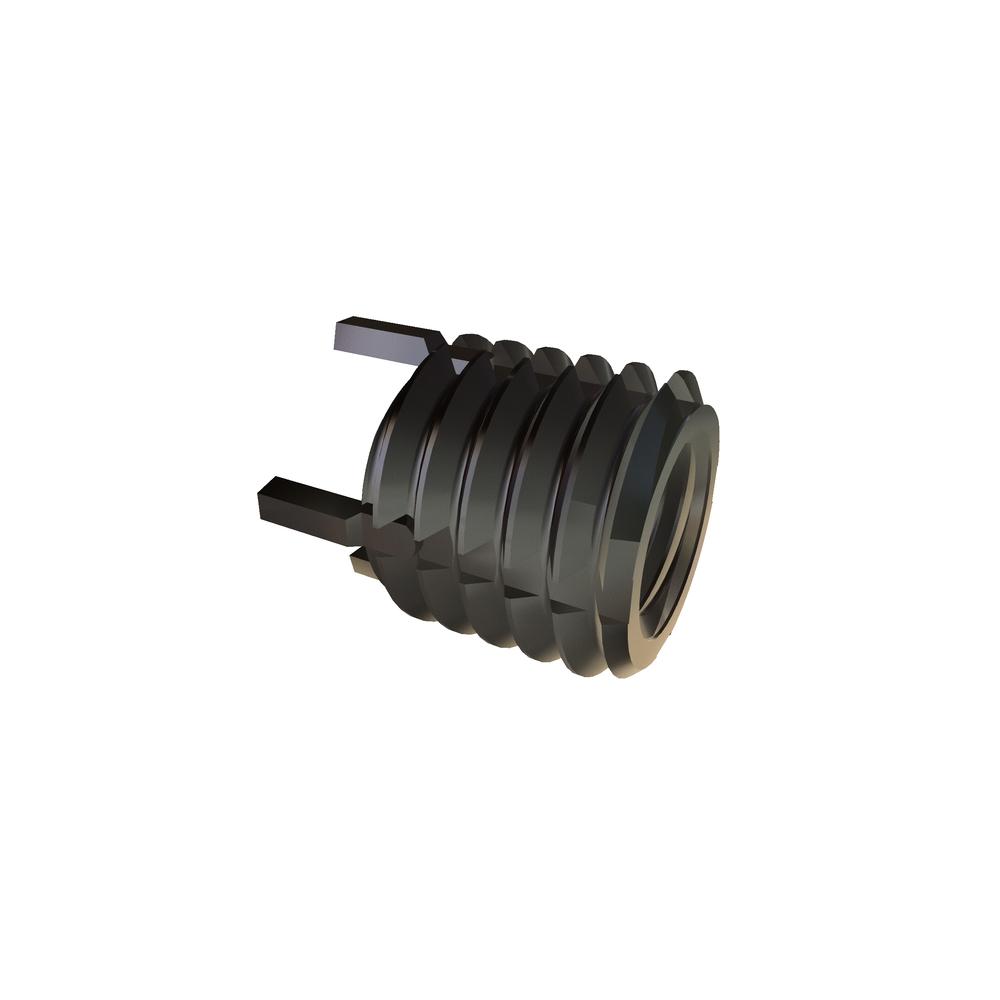

Image for reference purposes only. Actual product may vary.
76304
3/8-16 X .50 KEYLOCK INS 9/16-12 303SST
Alternate Codes: 91731A054, KNH616J HOWMET, MS51831-104
MS51831-104
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $5.571 | $4.588 | $4.105 | $3.467 | $3.319 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 3/8-16 |
| Finish | Passivated |
| Type | Keylock Insert |
| Brand | ACME INDUSTRIAL |
| Grade | Heavy Duty |
| Material | 303 Stainless Steel |
| External Thread | 9/16-12 |
| Units | Inch |
| Nominal Diameter | 0.375in |
| Insert Type | Non Locking |
| Drill Size | 0.516in |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 15/32in |
| Minimum Installation Depth | 0.560in |
| Thread Tap Size | 9/16-12 |
| Self Locking Distance | 0.250in |
| External Thread Nominal Diameter | 0.563in |
| Internal Thread Nominal Diameter | 0.375in |
| Bore Depth | 0.070in |
| Counter Sink Diameter | 0.572in |
