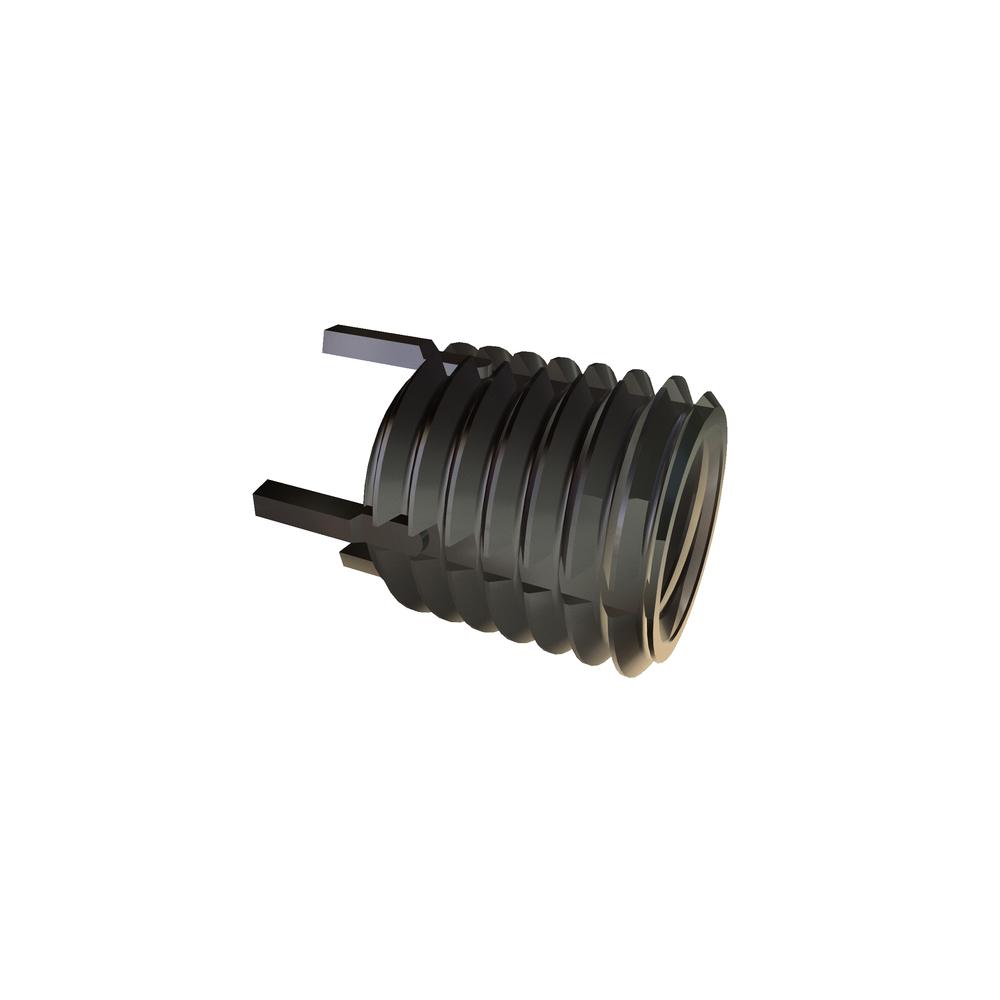

76306
1/2-13 X .68 KYLK INS 11/16-11 303SST
Alternate Codes: 217-076306, KNH813J HOWMET, MS51831-106 MILSPEC
MS51831-106
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $8.071 | $6.647 | $5.947 | $5.022 | $4.809 | Larger Quantities |
In Stock
| Thread Size | 1/2-13 |
| Material | 303 Stainless Steel |
| Finish | Passivated |
| Units | Inch |
| Nominal Diameter | 0.500in |
| Insert Type | Non Locking |
| Grade | Heavy Duty |
| Drill Size | 0.641in |
| Brand | ACME INDUSTRIAL |
| Type | Keylock Insert |
| Removal Drill Depth | 0.188in |
| Removal Drill Size | 19/32in |
| Minimum Installation Depth | 0.750in |
| Thread Tap Size | 11/16-11 |
| Self Locking Distance | 0.280in |
| External Thread Nominal Diameter | 0.688in |
| Internal Thread Nominal Diameter | 0.500in |
| Bore Depth | 0.100in |
| Counter Sink Diameter | 0.700in |
| External Thread | 11/16-11 |
